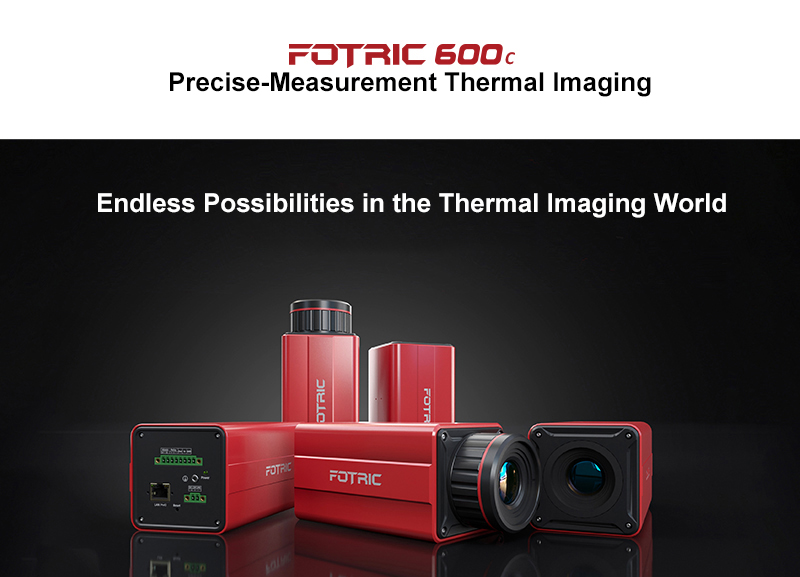

FOTRIC 600C Series
Product Introduction：
Precision temperature measurement online thermal imaging camera, thermal imaging camera, set up an infrared temperature monitoring system, measurement range up to 2000 degrees, equipped with a pan-tilt and explosion-proof housing- Consultation Hotline：18615230752 Landline：0531-88975421
Product Details
Technical parameters
Application scenarios
Optional accessories
Contact Us
In harsh environments (high temperature, humidity, corrosive conditions, etc.) and high-risk environments (explosive gases, dust, etc.), a protective enclosure can ensure that the FOTRIC 600C thermal imager works with high precision. However, the infrared window can affect the temperature measurement accuracy of the thermal imager when the ambient temperature changes, and adjusting the transmittance alone can't prevent this.
At this point, integrating the calibration of the protective enclosure and the thermal imager before leaving the factory is very important. It ensures that the enclosure and the device can measure temperatures accurately within the specified range, no matter the environmental temperature.
Scientific Research Industry — Application Scenarios | |
 |  |
Carbon fiber fatigue tensile testing | Tumor photothermal therapy |
 |  |
| Chip temperature testing | PCB temperature detection |
Quality Inspection Industry — Application Scenarios | |
 |  |
Fiber laser testing | LED luminaire thermal distribution |
 |  |
| Tire performance testing | Glass heating wire temperature distribution |
Large-Space Fire Prevention — Application Scenarios | |
 |  |
Online thermal imager real-time monitoring of coal bunker fire prevention | Online thermal imager monitoring hazardous waste warehouse fire prevention |
 |  |
| Thermal camera monitoring lithium battery warehouse fire prevention | Online thermal imager monitoring IDC server room fire prevention |
Petrochemical Industry — Application Scenarios | |
 |  |
Oil depot fire-prevention early-warning temperature monitoring | Reactor flange IR inspection |
 |  |
| Pump room IR fire-prevention early-warning | Thermal imaging detects LNG tank insulation defects |
Metallurgy Industry — Application Scenarios | |
 |  |
Conveyor belt fire-prevention IR online monitoring | Thermal imaging monitors ladle refractory defects |
 |  |
| Converter refractory temperature IR detection | Hot-blast furnace bottom refractory temperature IR imaging detection |
600C Series Online Thermal Imager — Built with Premium Global Hardware | |
 |  |
Main chip: Korean Samsung quad-core chip | Detector: French Lynred infrared detector |
 |  |
FPGA: American Xilinx programmable logic device | Power chip: American Texas Instruments chip |
Precise Measurement in Complex Environments | |
| |
Full-range accuracy: ±2°C or ±2% | Precise measurement range: –20°C to 2000°C |
Harsh-environment operation: –20°C to 65°C | Measurement consistency: ±1°C |
Building an Online Thermal Monitoring System — AdvantagesLong-term stable real-time monitoring; records the entire temperature-change process. Captures HD infrared and visible images and video. Achieves accurate infrared measurement, sensitively capturing subtle temperature differences. Automatic over-temperature early-warning (or linkage with other equipment) reminds staff to intervene promptly. |
 |
MoniTiR Digital Integrated Management PlatformThe MoniTiR integrated monitoring system combines resource management, device management, device monitoring, and alarm management functions. |
|
Resource Management — Adds, edits, deletes, and configures monitoring points, zones, services, etc. — the foundation for stable operation of the integrated monitoring system. Device Management — Adds, edits, and deletes user device records and completes association with monitoring points — the key to system configuration. Device Monitoring — Displays dynamic data, dynamic defect charts, dynamic curves, and live video of the monitored equipment — the window for human-machine interaction. Alarm Management — Includes alarm output configuration, alarm preview, and alarm display — the alarm core of the system: Multiple alarm output methods: audible/visual, email, WeChat, SMS, and phone call Confirm in real time whether a monitoring point has an alarm signal while viewing live video Display alarm data, images, live video, and video playback |
Full Radiometric Thermal Video StreamContinuously, automatically, and non-contactly collects temperature data from hundreds of thousands of points simultaneously. Supports full radiometric thermal video stream output, providing base data for temperature-based condition monitoring and analysis. |
|
Integrated Enclosure-Imager Temperature Calibration for Accurate Measurement |
|
In harsh environments (high temperature, humidity, corrosiveness) and high-risk environments (explosive gas, dust, etc.), the protective enclosure ensures high-precision operation of the FOTRIC 600C thermal imager. However, the IR window affects measurement accuracy under changing ambient temperatures, which cannot be avoided even by adjusting transmittance. At this point, integrated enclosure-imager temperature calibration before leaving the factory is critical — it ensures that the enclosure-imager measurement stays within accuracy limits under any ambient temperature. |
