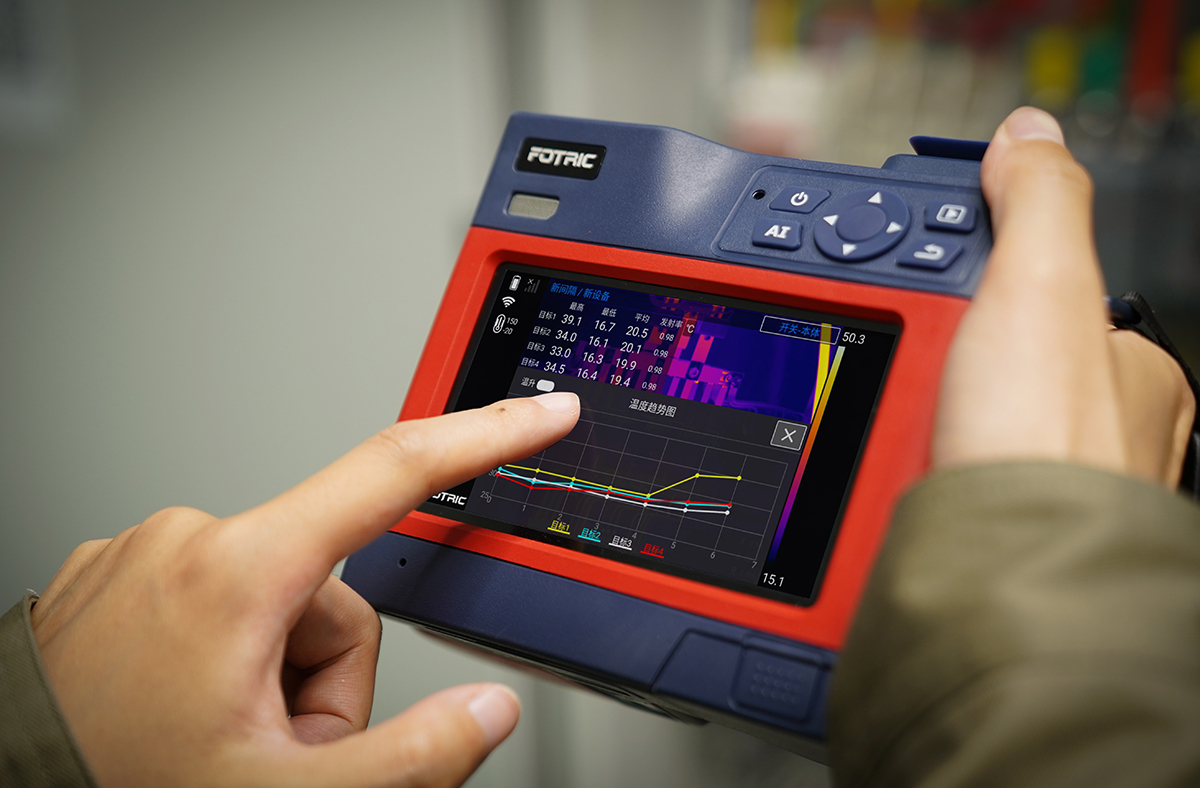

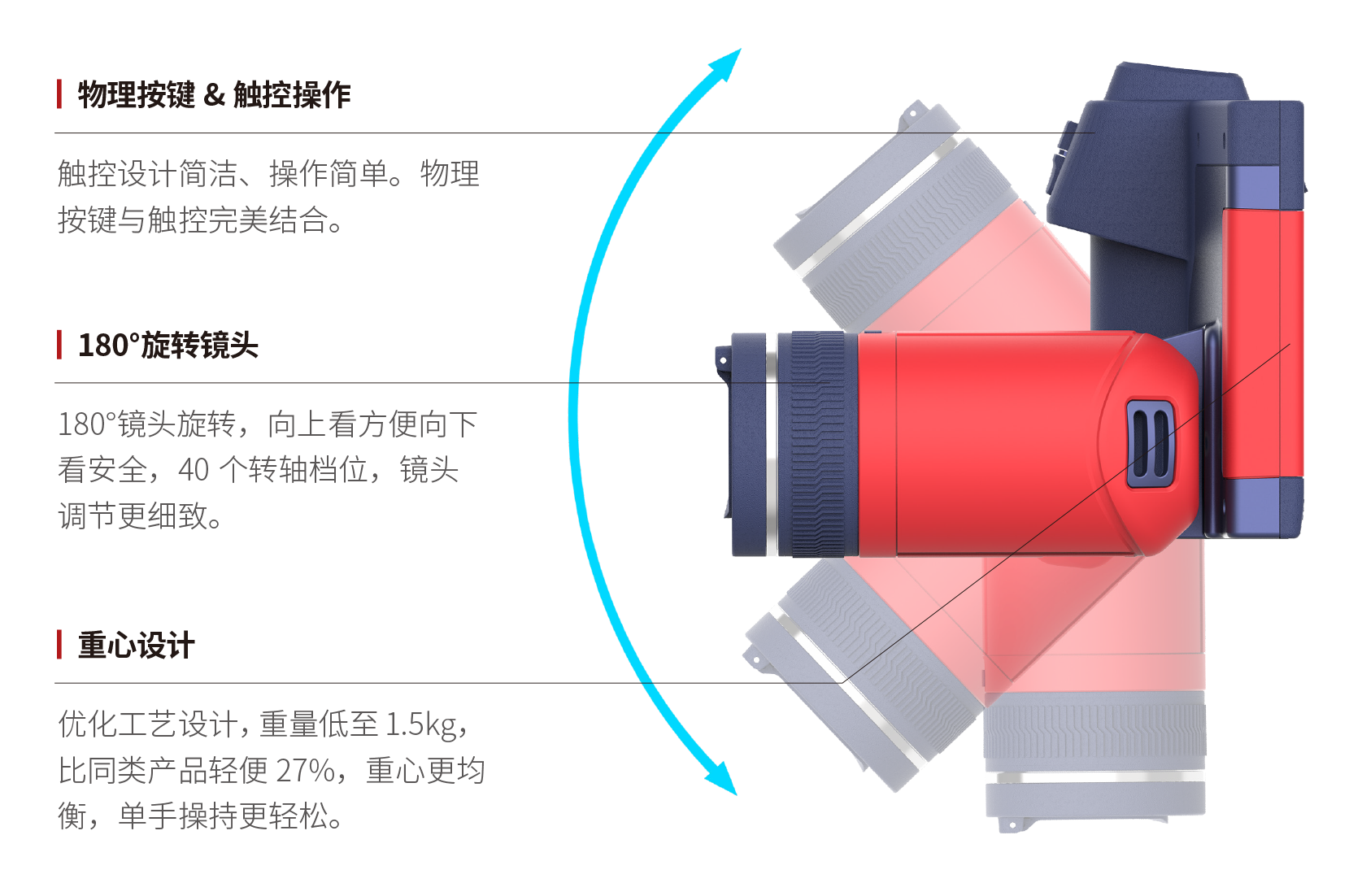

Carefully selected top-notch infrared detectors from around the world provide high-resolution images in the most compact packaging, meeting the needs of security applications for long-range and wide-field views. The combo of touchscreen and physical buttons makes the 360 thermal imager super easy to use. The large screen, combined with ultra-high pixel density and wide color gamut, delivers detailed and vivid thermal images for an amazing visual experience.

Temperature Measurement — Ultimate Temperature Sensitivity

Precise & Comprehensive

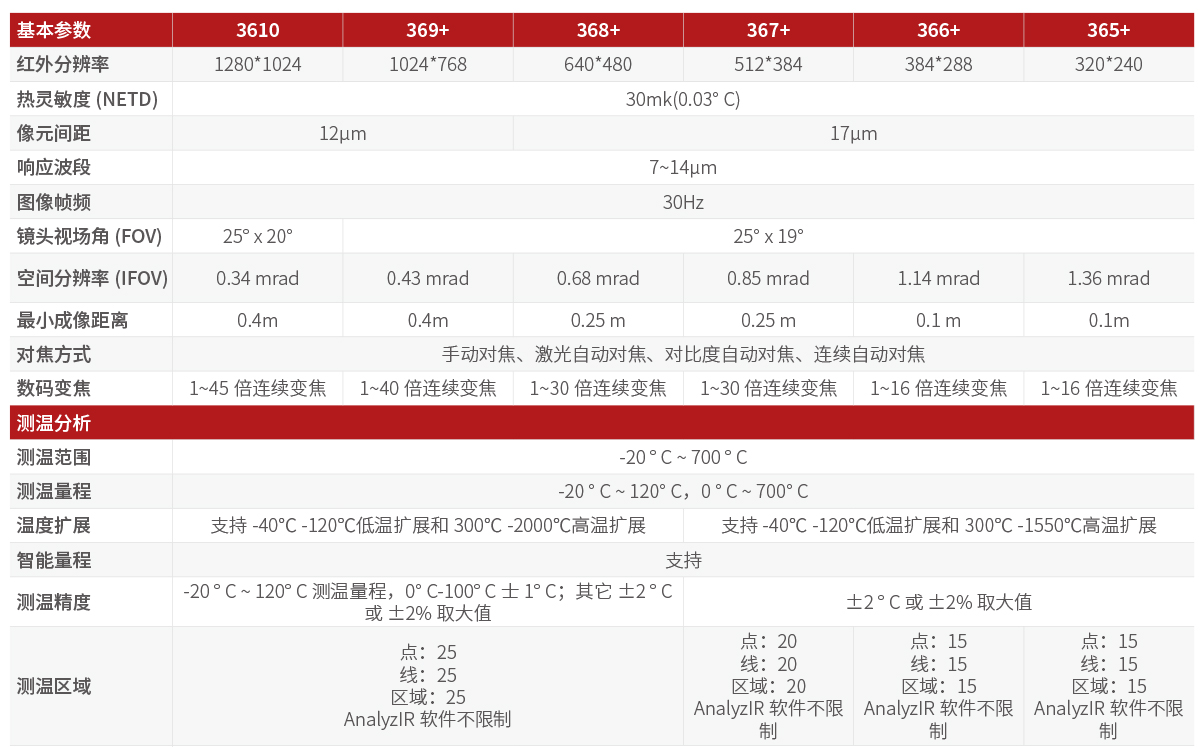

Measurement Accuracy: ±1°C — Advanced algorithms and high-sensitivity detector ensure stable, accurate measurements across varying environments.

Temperature Range: –20 to 700°C — Supports low-temperature extension down to –40°C and high-temperature extension up to 2000°C.

Drift: <0.5°C — Minimizes the impact of ambient temperature fluctuations on measurement results, improving accuracy and reducing errors.

Measurement Consistency: ≤0.5°C — Helps engineers better understand temperature distribution across all zones during production processes.

Thermal Sensitivity: 30 mK — Detects extremely subtle temperature changes, enhancing measurement sensitivity and precision.

Warm-Up Time: 5 minutes — Reduces waiting time for faster measurements and more productive work time.

Imaging — Ultimate Image Quality

Clear & Detailed

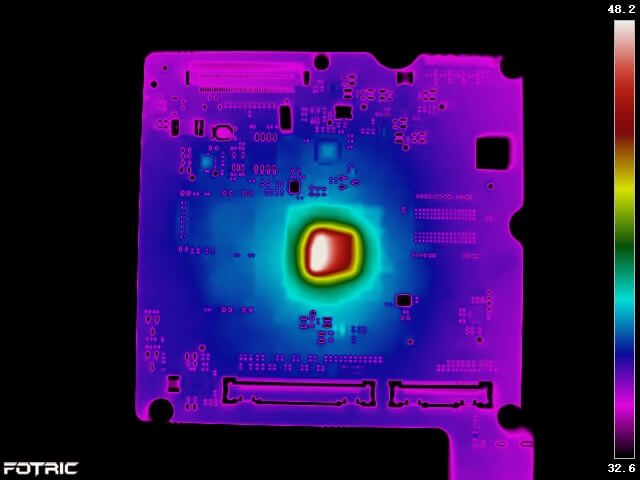

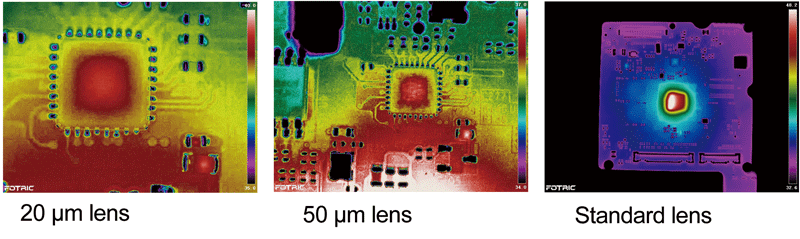

The FOTRIC 280+ Series Thermal Camera supports a wide range of infrared lenses — macro, standard, wide-angle, and telephoto — to handle virtually any research scenario. Paired with the 20 µm macro lens, it captures crisp images of ultra-fine targets and delivers precise temperature distribution data, making it especially suitable for scientific research and product development applications with demanding thermal and imaging requirements.

Powerful Data Acquisition

Full Radiometric Temperature Video

1 TB Ultra-Large File, Uninterrupted Data Recording

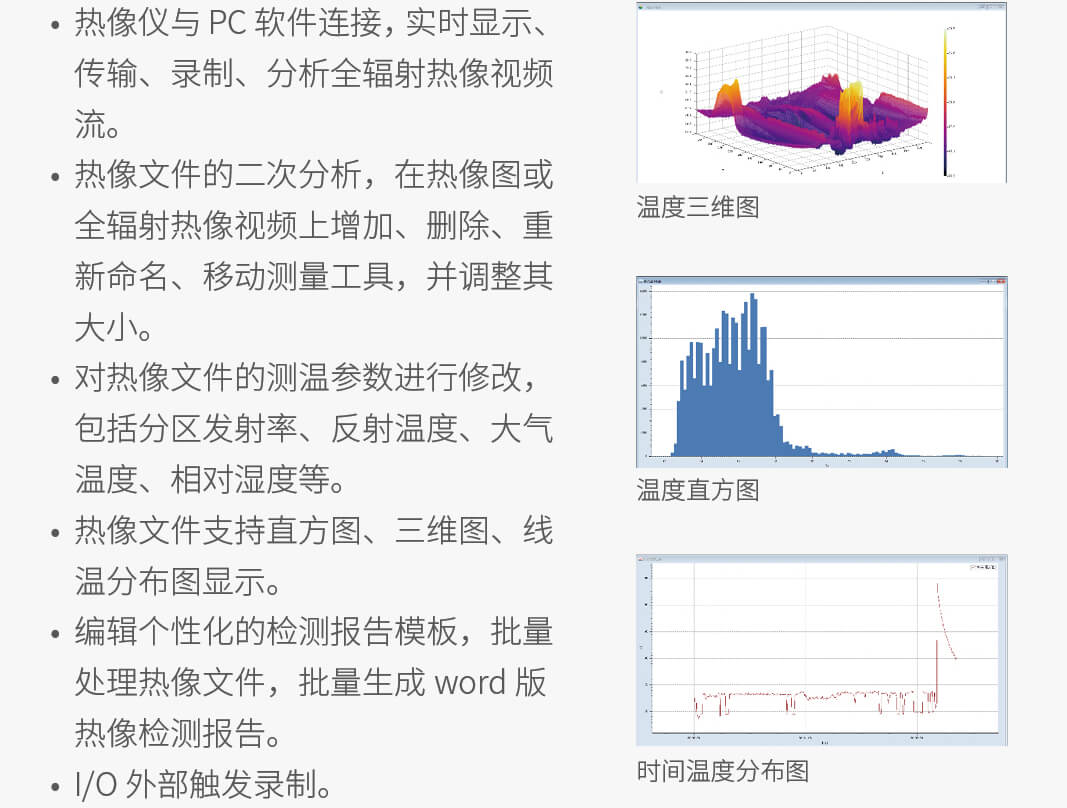

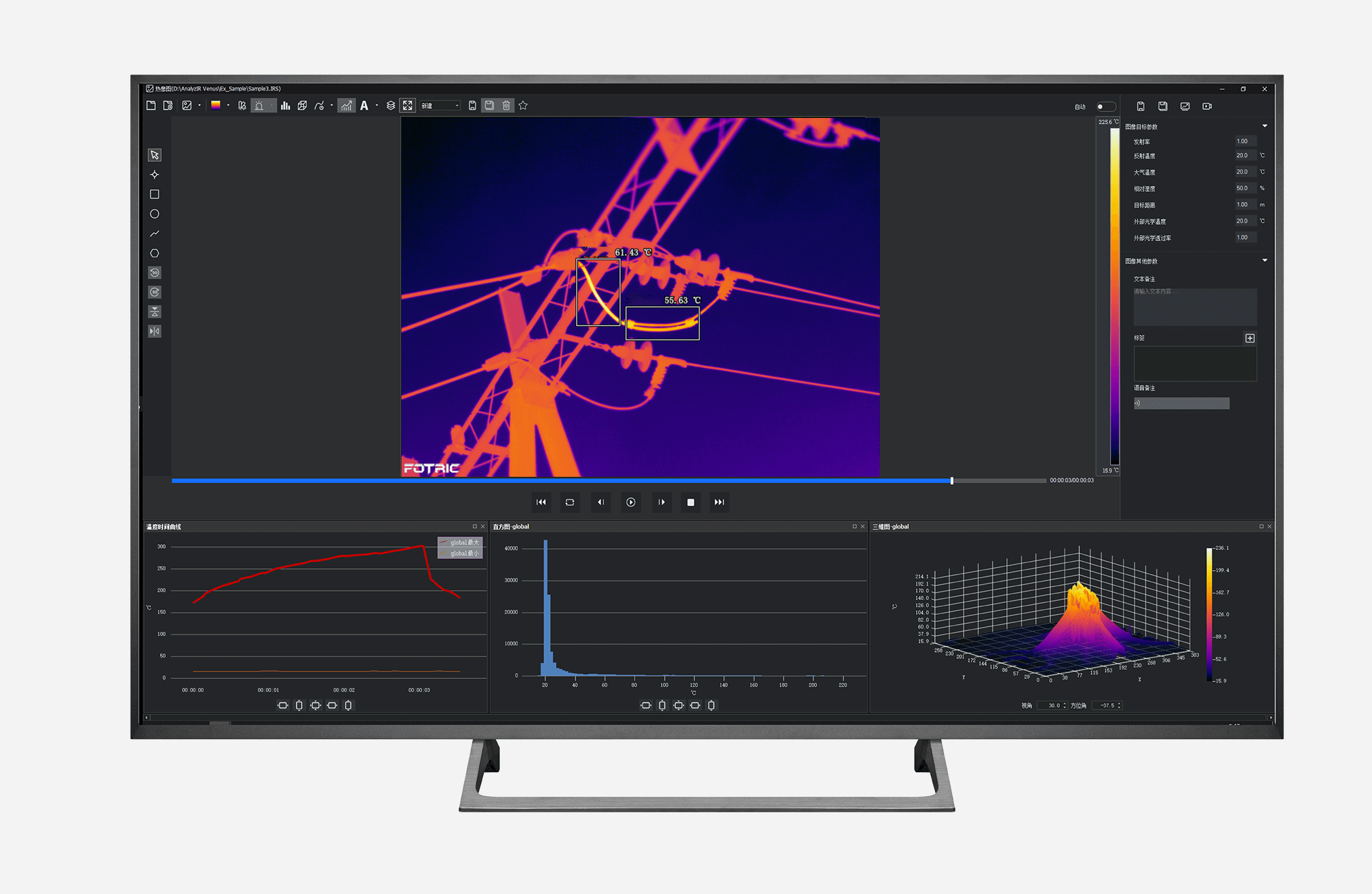

For long-duration scientific research testing, users need to capture enormous data volumes. The AnalyzIR analysis software compatible with the FOTRIC 280+ Series supports recording full radiometric video up to 1 TB (1024 GB), with the ability to quickly open 1 TB full radiometric video files — helping users completely record and analyze research data.

On-Device Full Radiometric Video Recording

Supports on-device recording of full radiometric video with customizable frame rates.

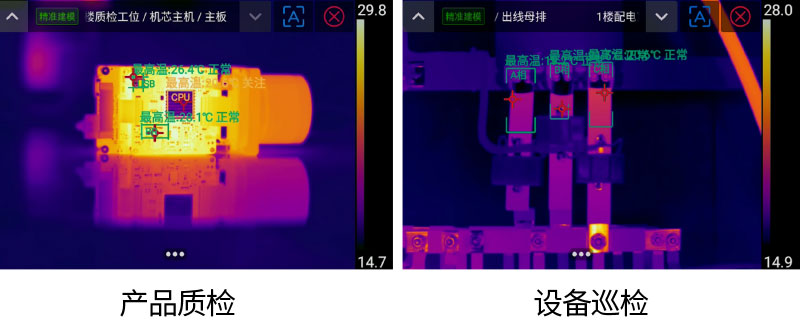

On-Device Instant Analysis of Thermal Images and Full Radiometric Video

Supports on-device real-time analysis of thermal images and full radiometric video in the gallery. No computer required for professional analysis after data collection — avoiding repeated shooting, convenient and efficient.

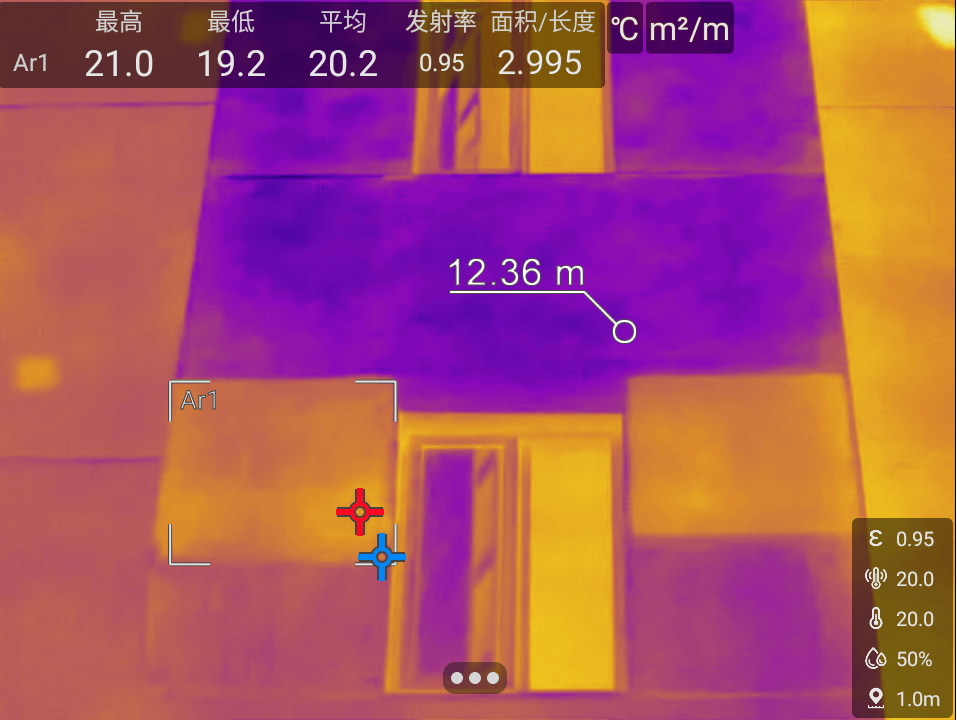

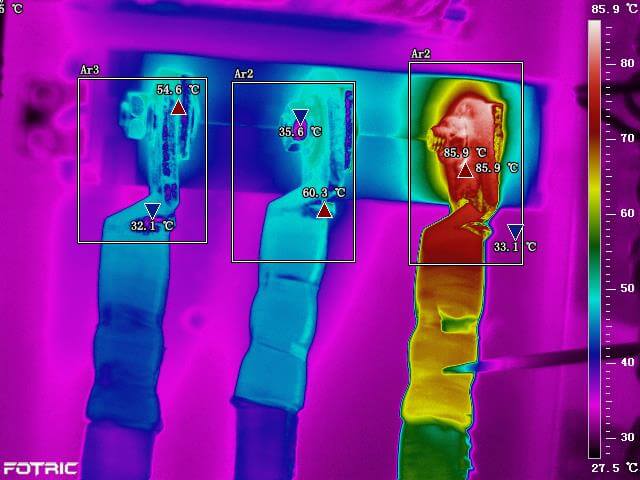

On-Device Zone Emissivity Settings

A single thermal image may contain objects with different emissivity values. FOTRIC supports independent emissivity settings for each, ensuring accurate temperature measurement.

On-Device Temperature Rise Display and Temperature Difference Calculation

Set a reference temperature to calculate temperature rise for all measurement points. The temperature difference function calculates the difference between any two measurement points, or between any point and a reference temperature.

Hardware — Ultimate Hardware Performance

Premium-Quality Hardware

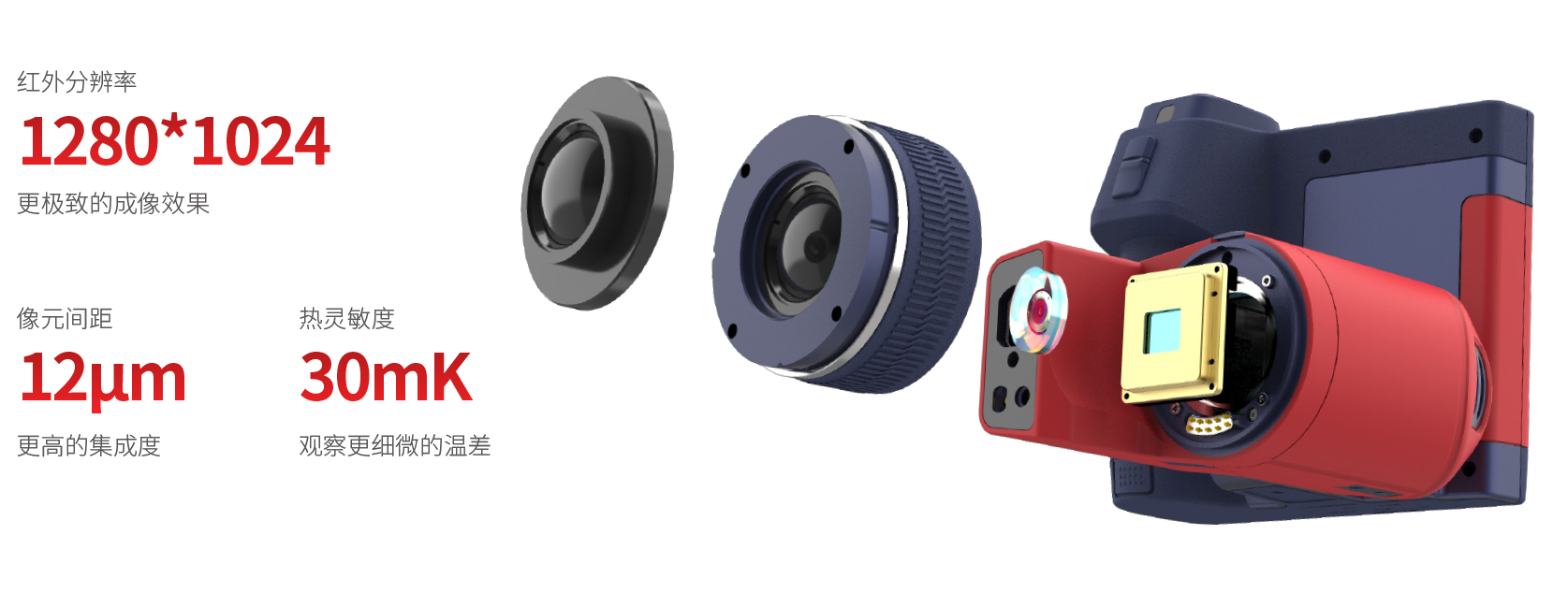

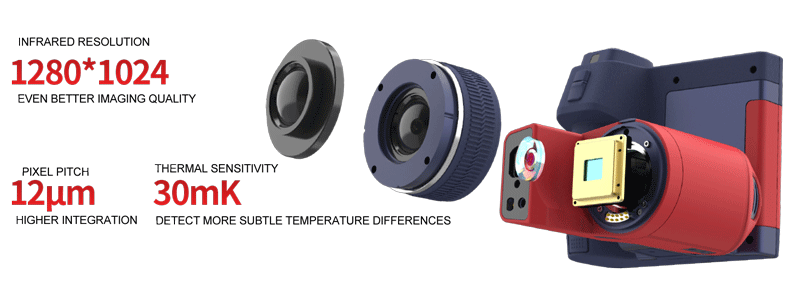

World-Class Detector

Equipped with a globally top-tier infrared detector, delivering high-resolution imaging in the most compact package — meeting the long-distance and wide-field-of-view demands of security applications.

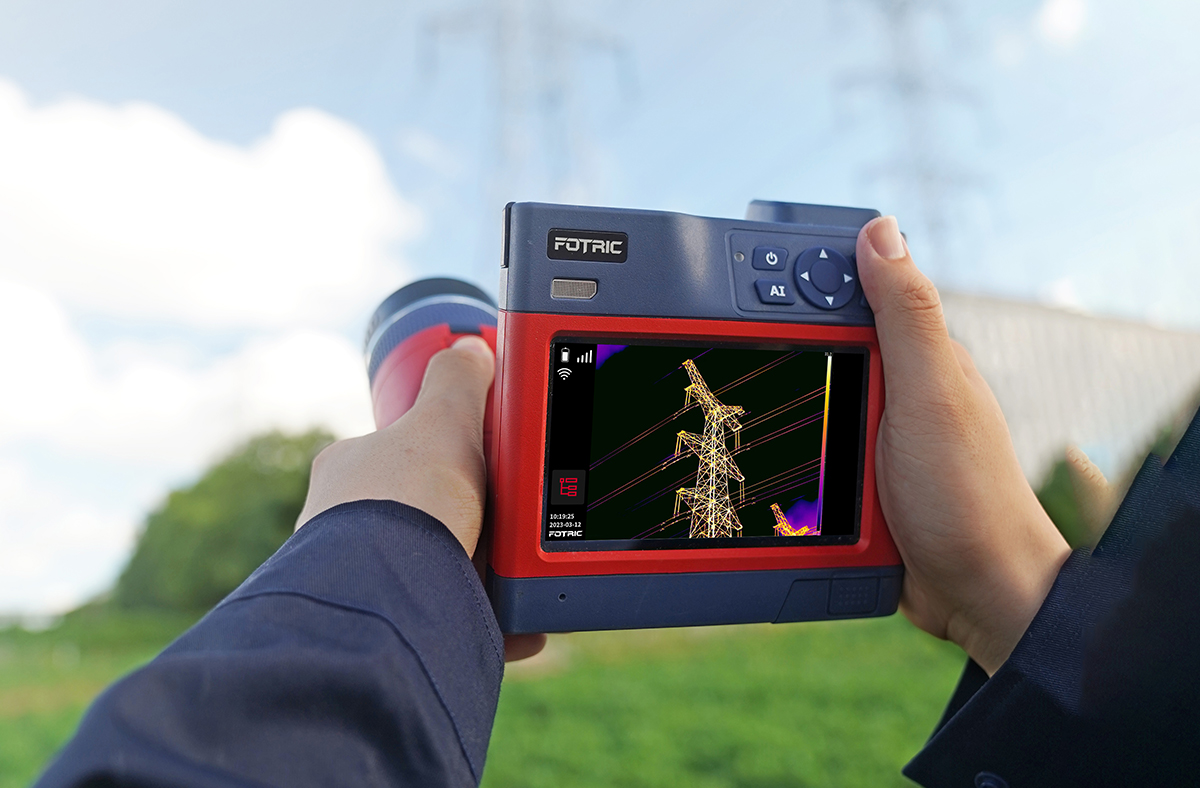

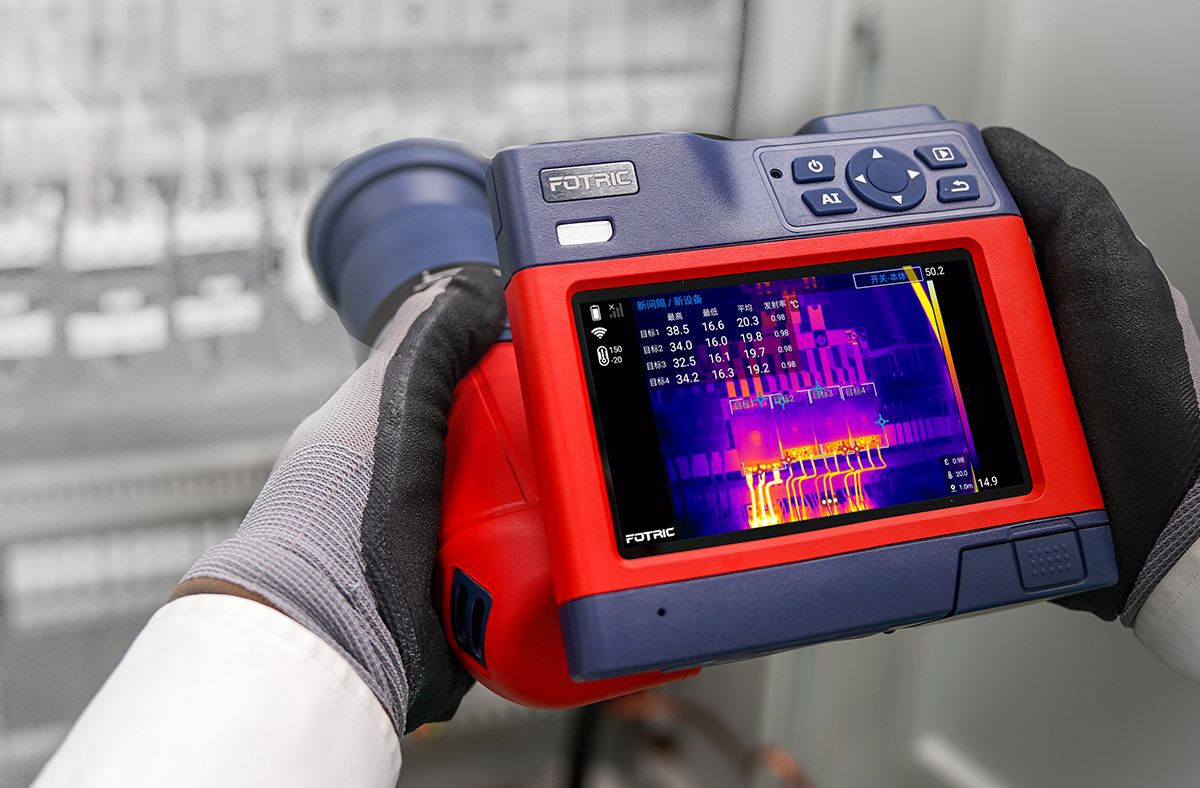

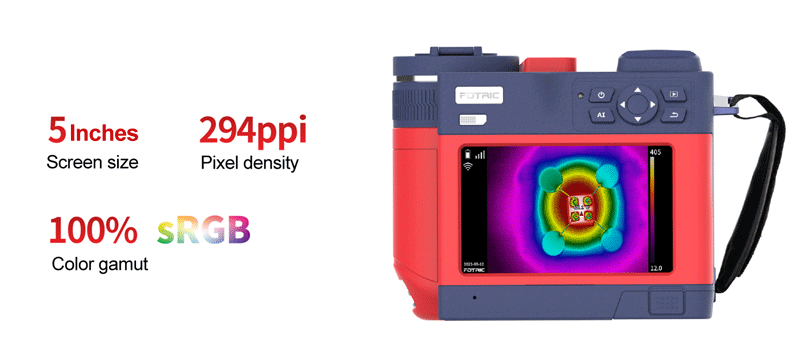

Touchscreen Display

5-inch large touchscreen for convenient operation and easy viewing. Ultra-high pixel density and wide color gamut deliver responsive operation and stunning visual performance.

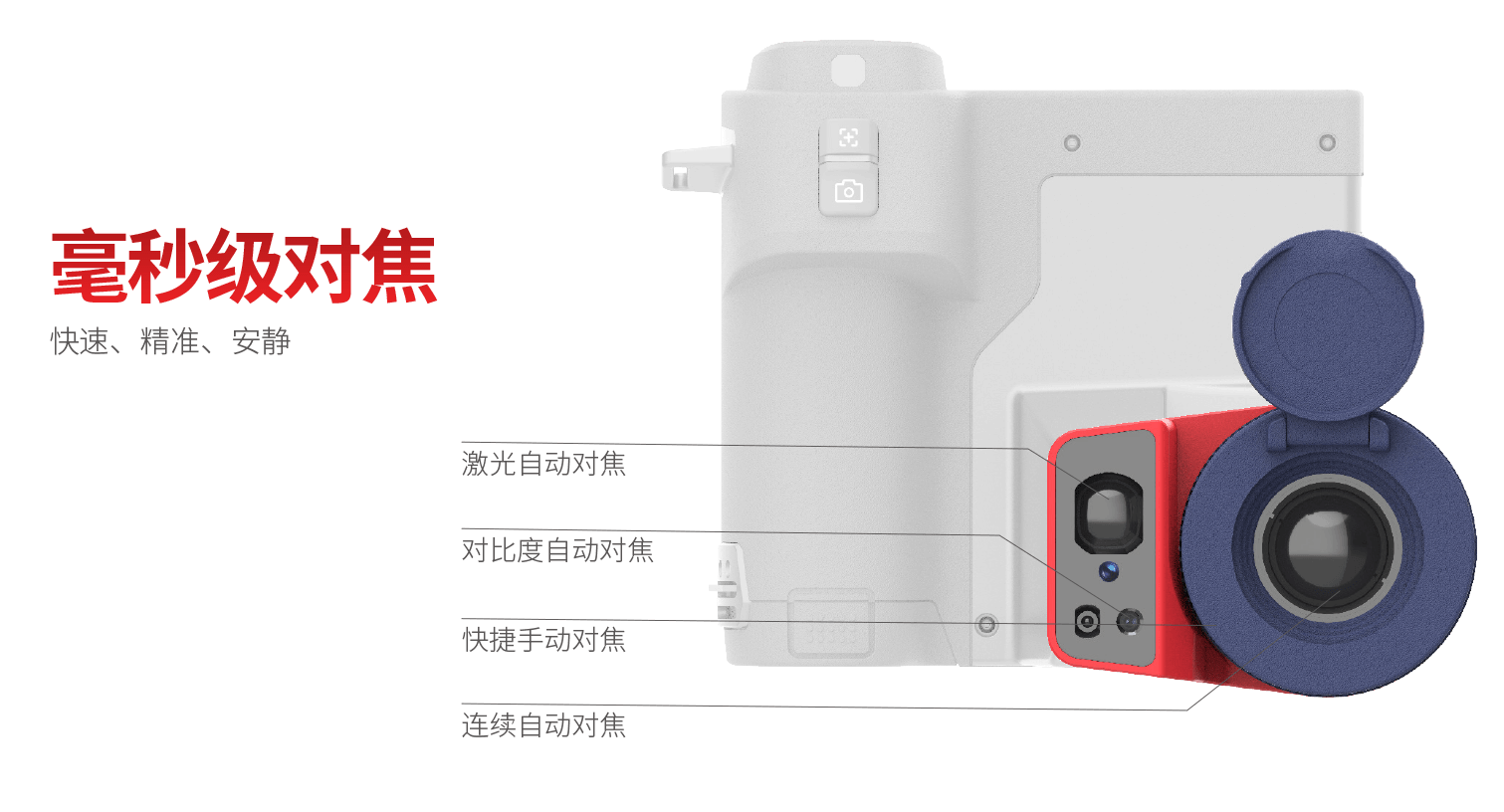

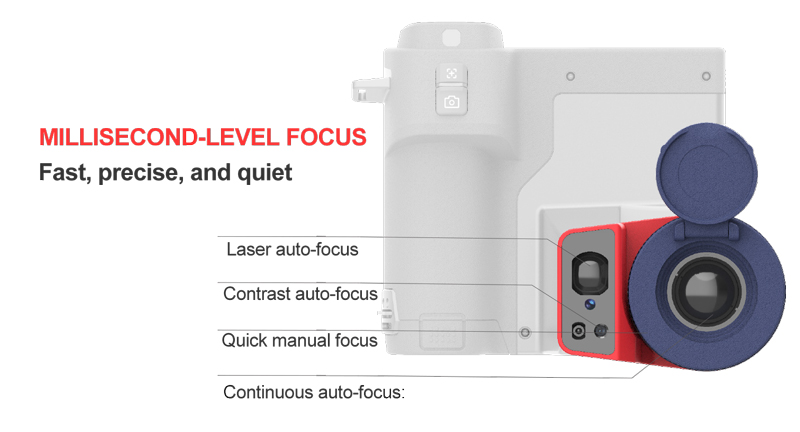

Multiple Focus Modes for Crystal-Clear Imaging and Accurate Data

Manual focus, laser auto-focus, contrast auto-focus, continuous auto-focus — a variety of focus modes ensure sharp images and accurate data, making your research data more reliable.

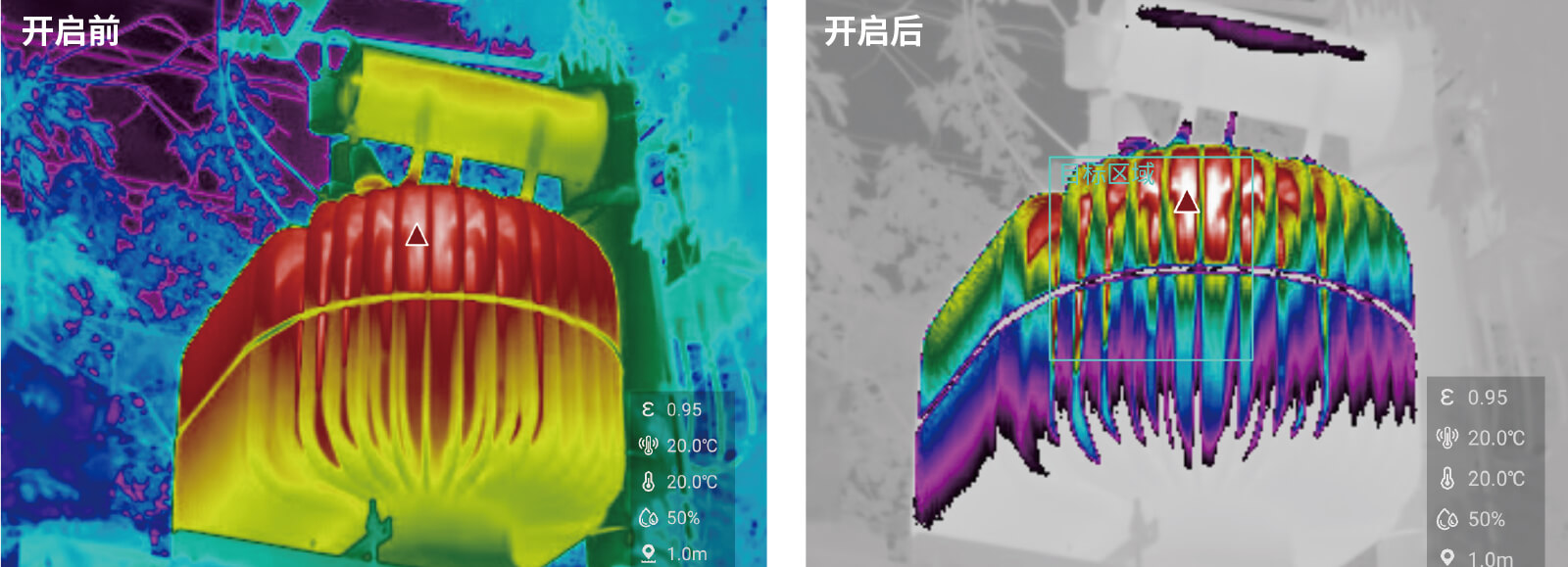

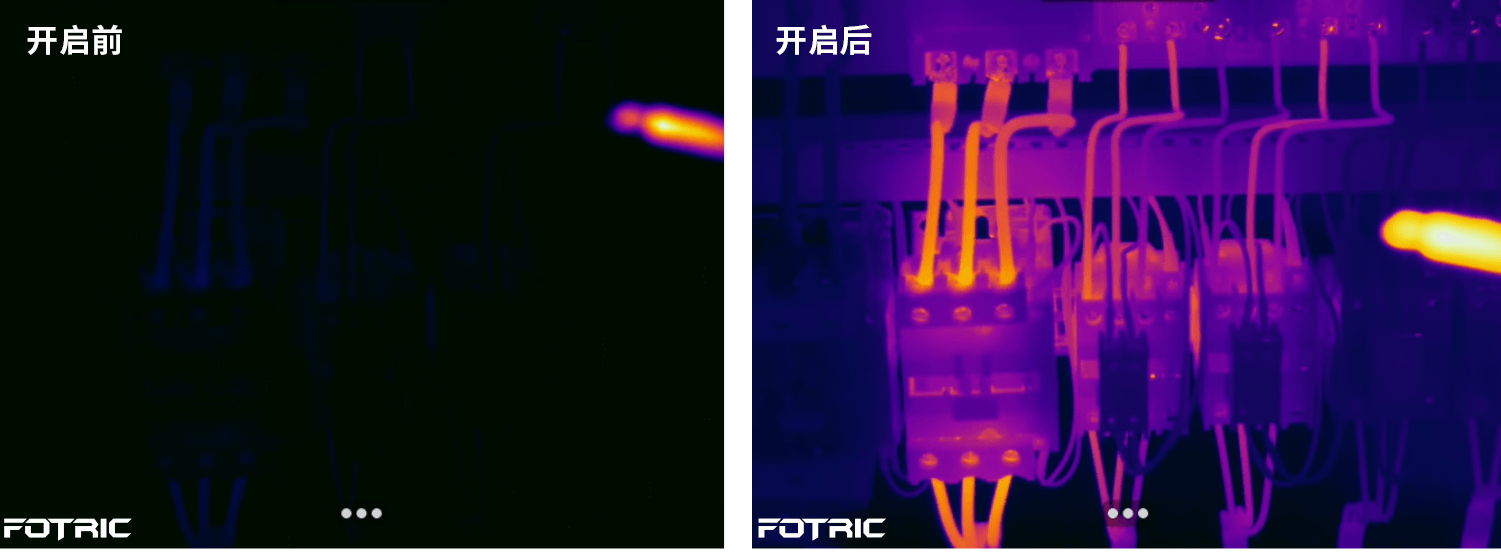

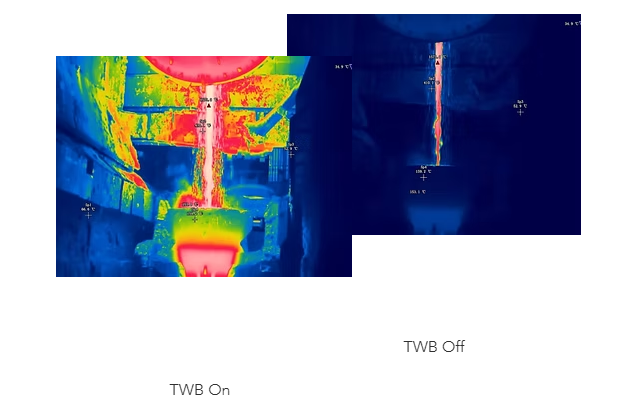

TWB (thermal white balance) Feature

TWB essentially re-scales the palette ribbon based on the number of pixels in representing each temperature range. Consequently, the temperature distribution of the entire image is more clearly laid out for the inspector.

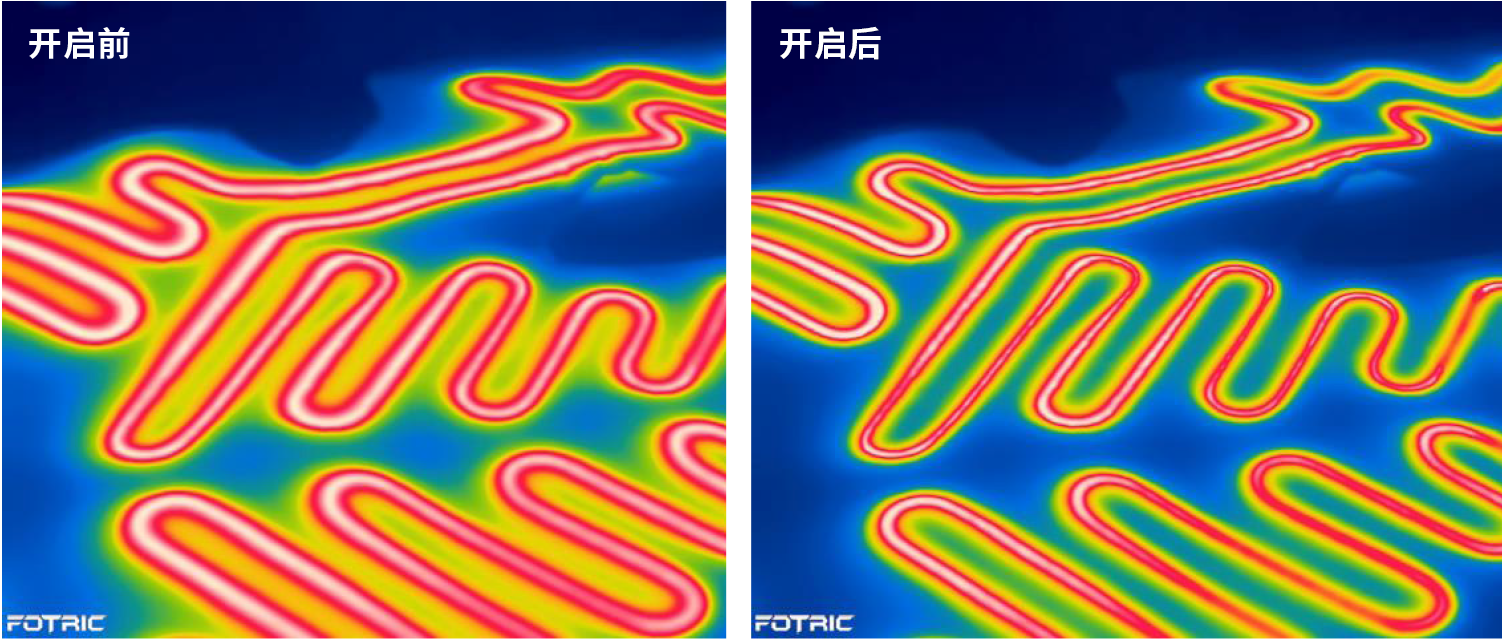

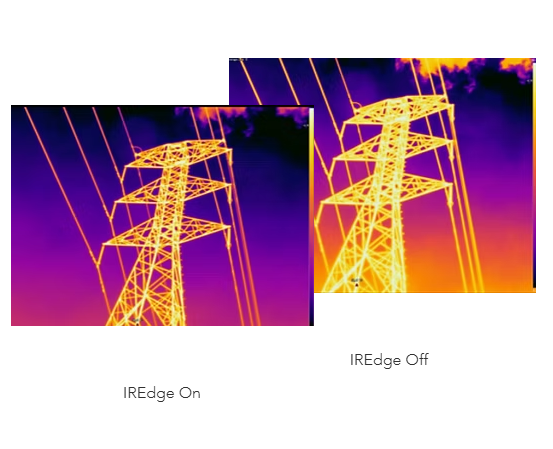

IREdge Imaging Algorithm

The IRedge function strengthens the visual impact of object contour and edges to help users distinguish them from the background.

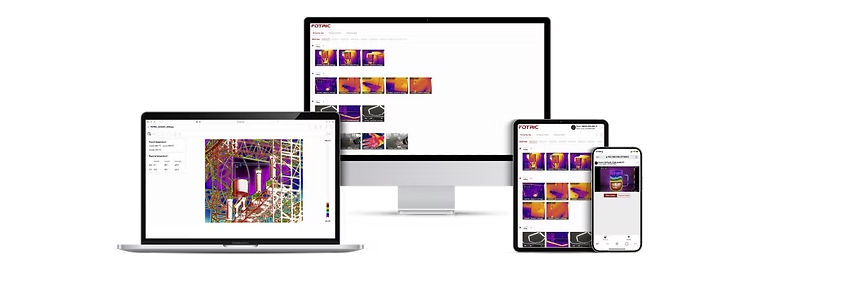

Comprehensive Thermal Analysis Options

Utilizing suitable image analysis and reporting software can have a transformative impact on your business. It simplifies problem understanding for customers and instills trust in the effectiveness of your solutions.
