FOTRIC 320Q Series
Product Introduction：
A compact, portable handheld thermal imager that’s also durable and easy to use.- Consultation Hotline：18615230752 Landline：0531-88975421
Product Details
Technical parameters
Application scenarios
Optional accessories
Contact Us

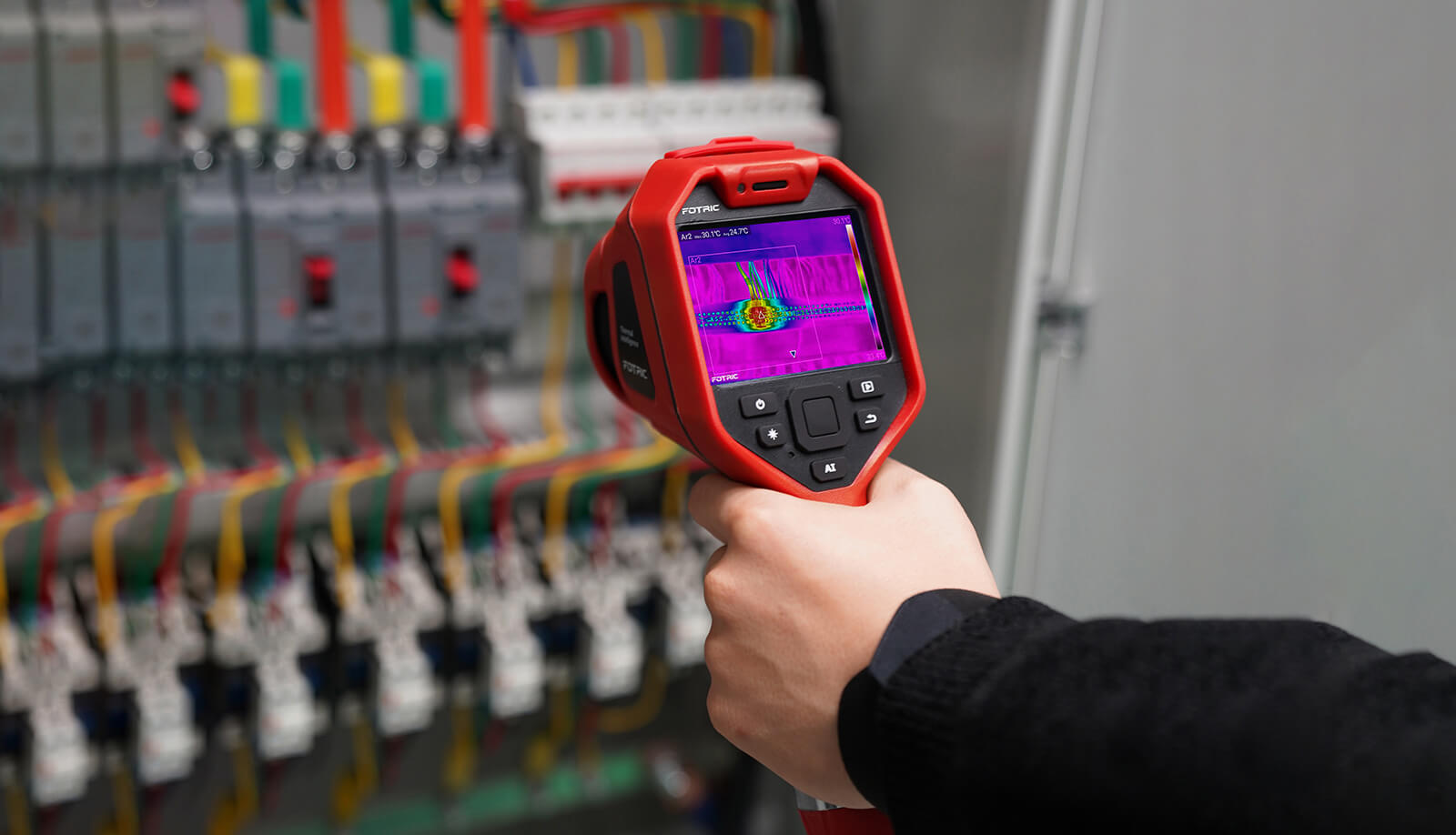

The FOTRIC 320Q series thermal imager is a compact, portable handheld thermal camera that’s also durable and easy to use. It’s widely used for inspecting electrical equipment, maintaining factory machinery, and servicing HVAC systems.
Core Parameters
| Specification | Value |
|---|---|
| Max Infrared Pixels | 384 × 288 — Multiple pixel options using French Lynred infrared detector for more precise measurement and clearer imaging |
| Visible-Light Pixels | 8 MP — Industrial-grade CCD camera delivers HD visible-light photos even in harsh industrial environments |
| Temperature Range | –20 to 550°C or 650°C — Two ranges to meet diverse testing scenarios and requirements |
| Measurement Accuracy | ±2°C or ±2% — Industry-standard accuracy for precise infrared measurement |
| Operating Ambient Temperature | –20 to 50°C — Stable operation even in harsh environments |
| Measurement Consistency | ±1°C — High full-screen consistency ensures accurate temperature data |
| Wide-Angle Lens | 49° × 37° — Wide-angle lens for easy measurement of large areas |
| Focus Mode | Manual focus + 0.4 m focus-free — Accurate focusing for clear imaging and precise temperature measurement |
Wide Range of Applications | |
The FOTRIC 320Q Series Thermal Camera is a compact, portable handheld imager with durable and user-friendly design — widely used in electrical equipment inspection, plant equipment operation & maintenance, HVAC equipment maintenance, and more. | |

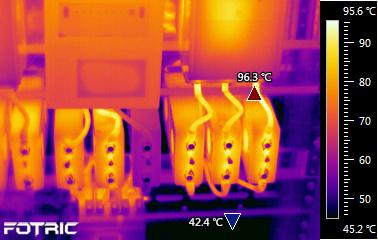

Electrical equipment inspection |

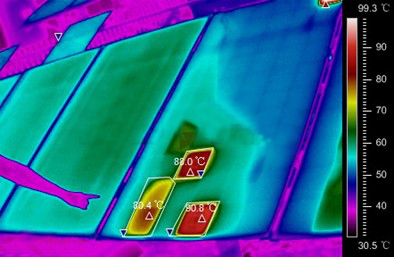

Solar PV panel inspection |

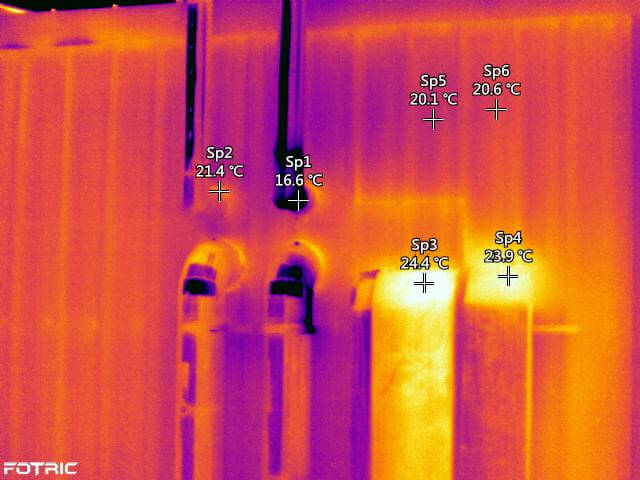

Plant pipeline inspection |
Electrical circuit overload inspection |

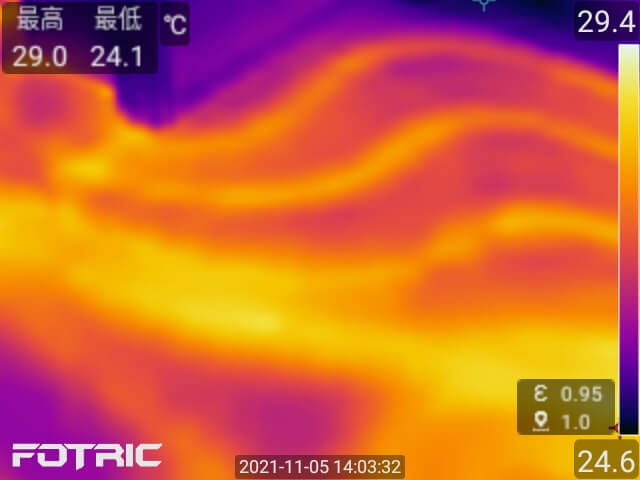

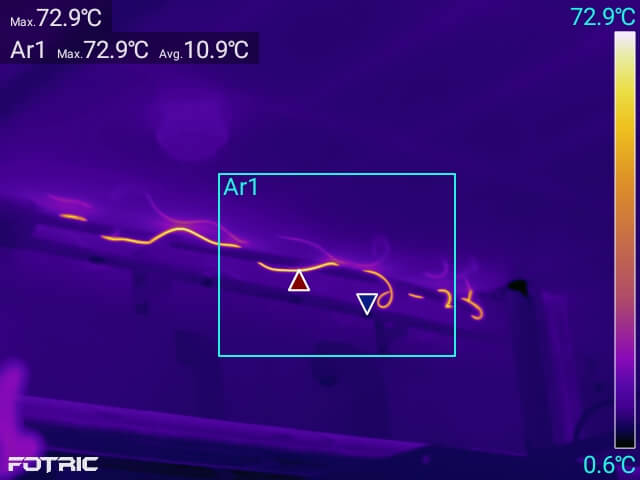

Underfloor heating pipeline inspection |

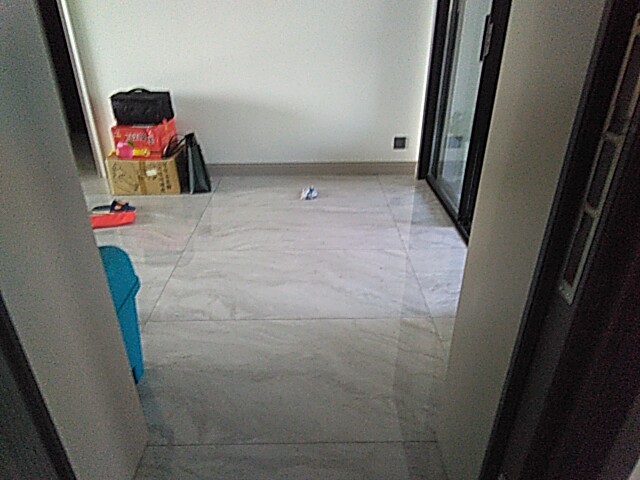

Underfloor heating pipeline inspection (visible light image) |

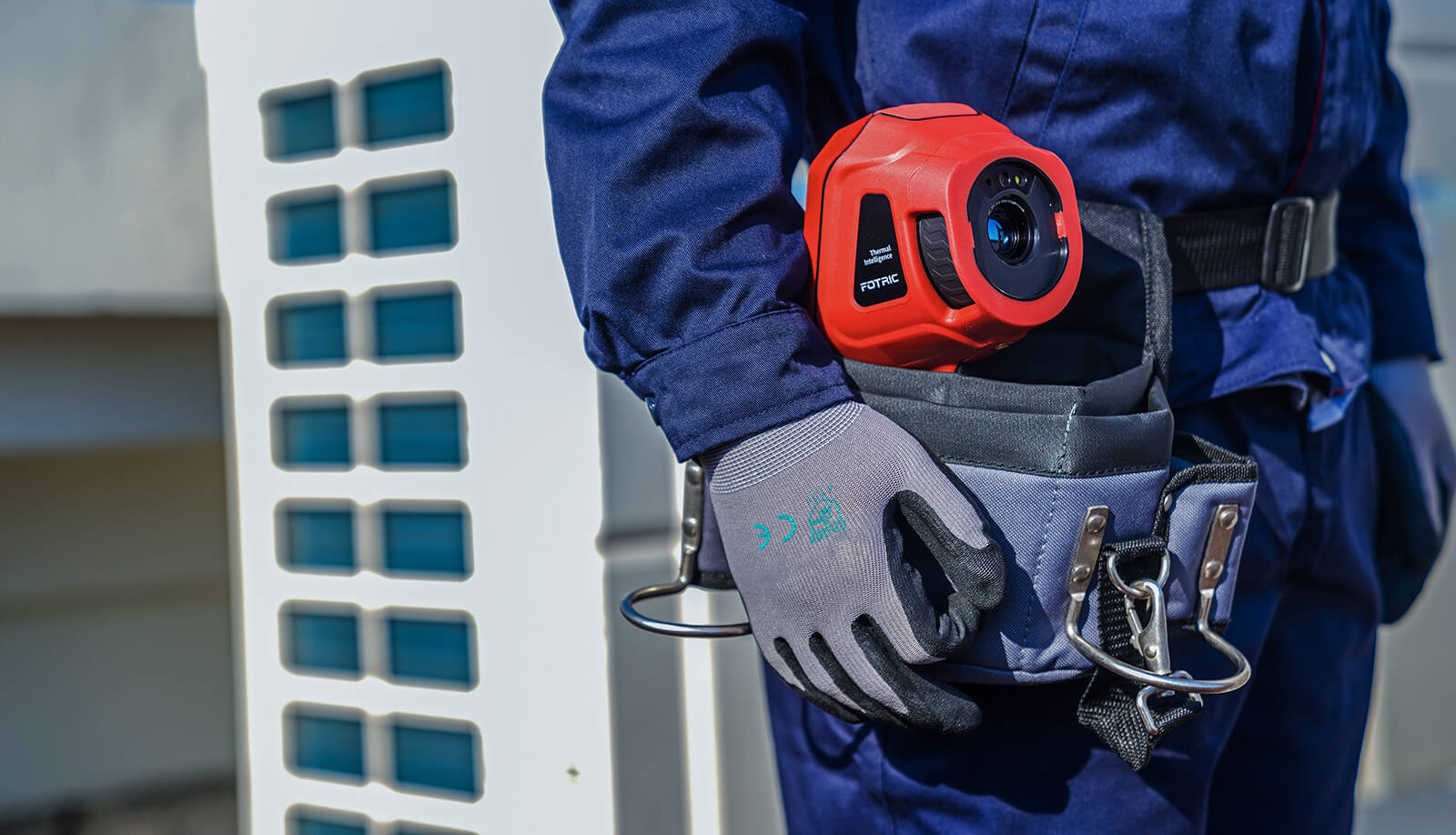

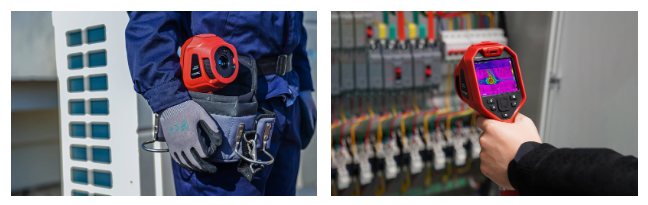

320Q Thermal Camera — Reliable & Compact
| Feature | Description |
|---|---|
| IP54 | Dust and water resistant for complex working environments |
| 50,000 Images | Standard 32 GB TF card stores over 50,000 thermal and visible images; compatible with 64 GB and 128 GB cards |
| 2 m Drop Rated | Compact yet built with rugged drop-resistant design |
| 8-Hour Battery Life | ≥4 hours per battery; 2 batteries included for all-day operation |
| OTA Upgrade | TF card offline upgrade or OTA wireless update for faster software iteration |
| Data Transfer | Type-C, WiFi, HDMI, Bluetooth, cellular network, TF card, WiFi-FTP |
| 243 × 95 × 142 mm | Compact form, easily fits in toolboxes and bags |
| 730 g | Only 730 g with battery, comparable to an iPad Pro |
320Q Thermal Camera — Professional & Easy to Use | |

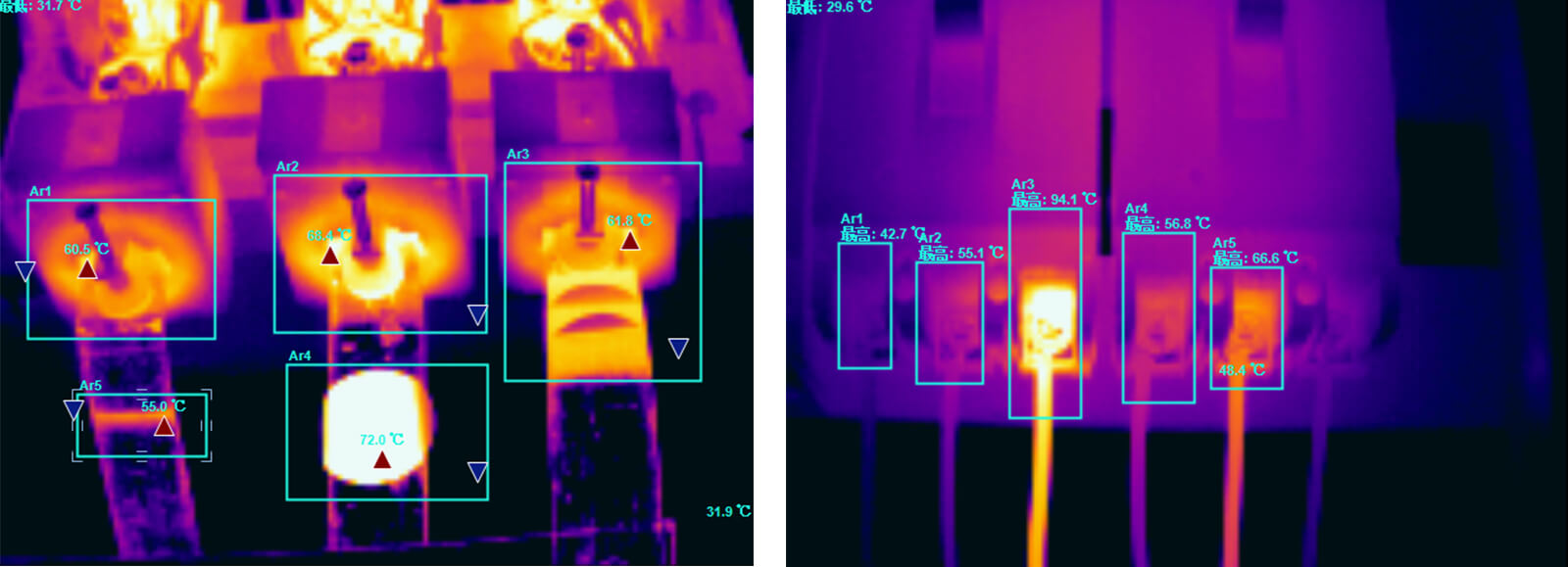

Powerful On-Device Analysis Supports up to 12 points, 6 lines, and 12 areas with zone measurement and zone emissivity settings — avoiding repeated shooting and greatly improving on-site diagnostic efficiency. | |
| |

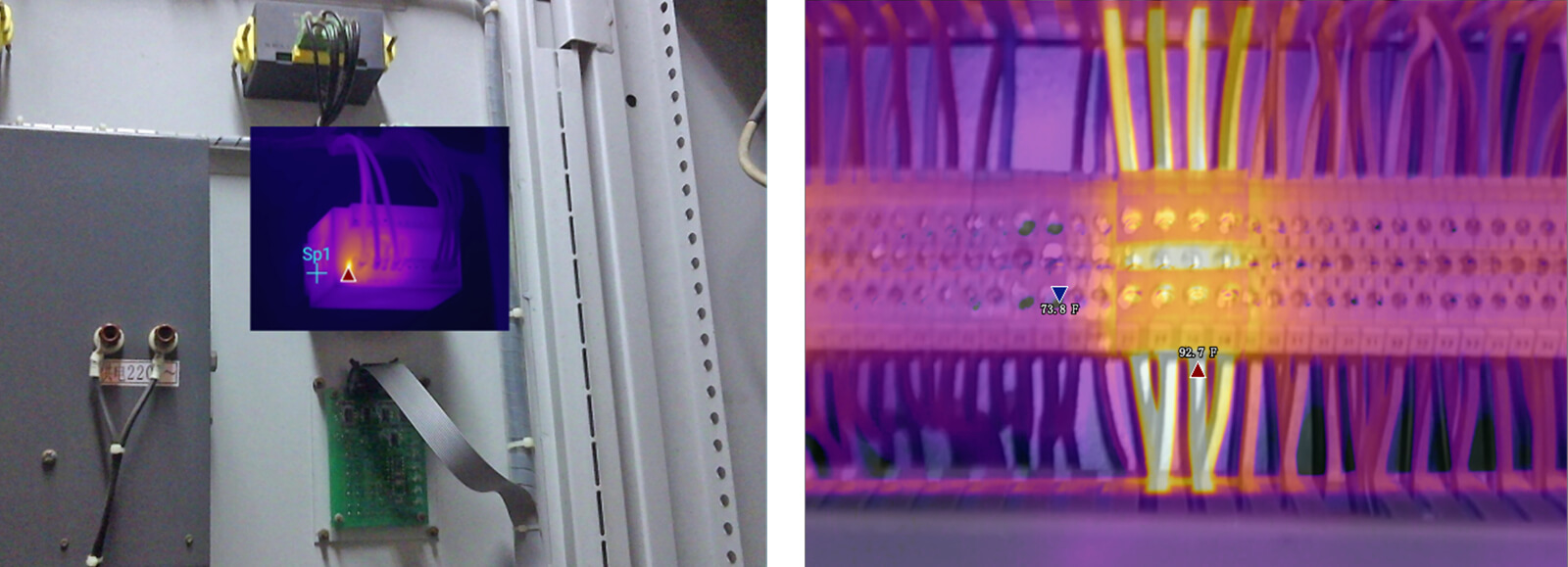

Four Image Modes Thermal, visible light, picture-in-picture, and T-DEF® — four image modes help users quickly locate fault areas within a scene. | |
| |

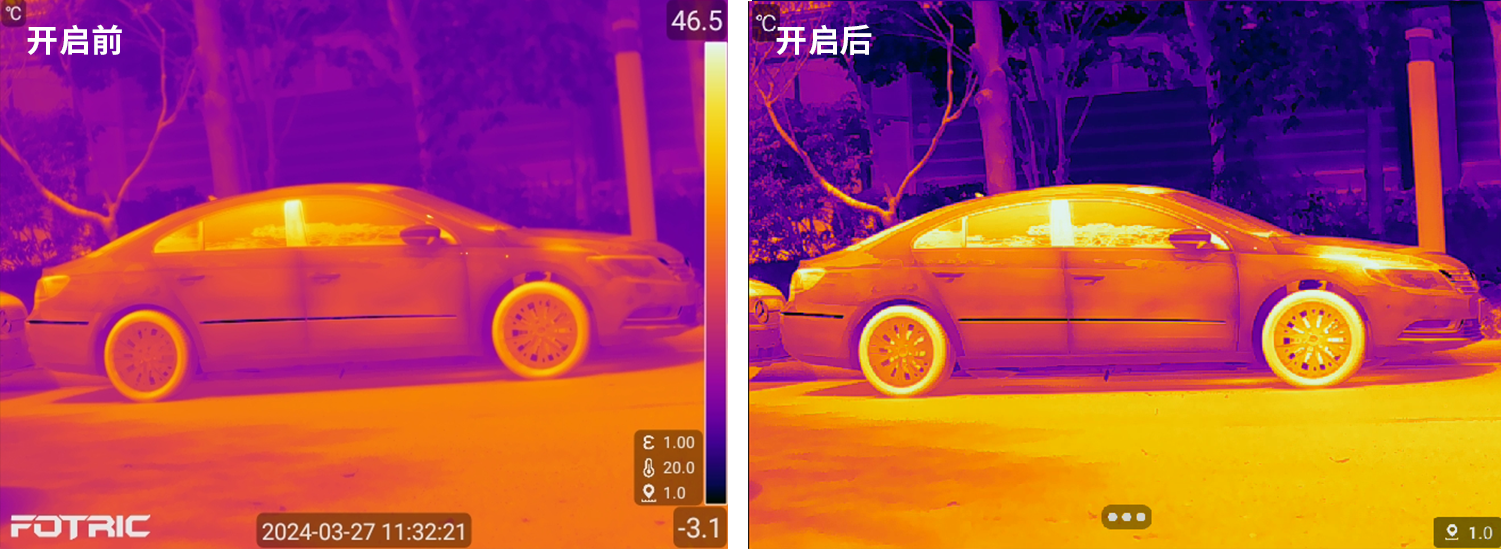

IREdge™ Image Enhancement FOTRIC proprietary technology that significantly enhances detail rendering of target objects in complex scenes. | |
| |

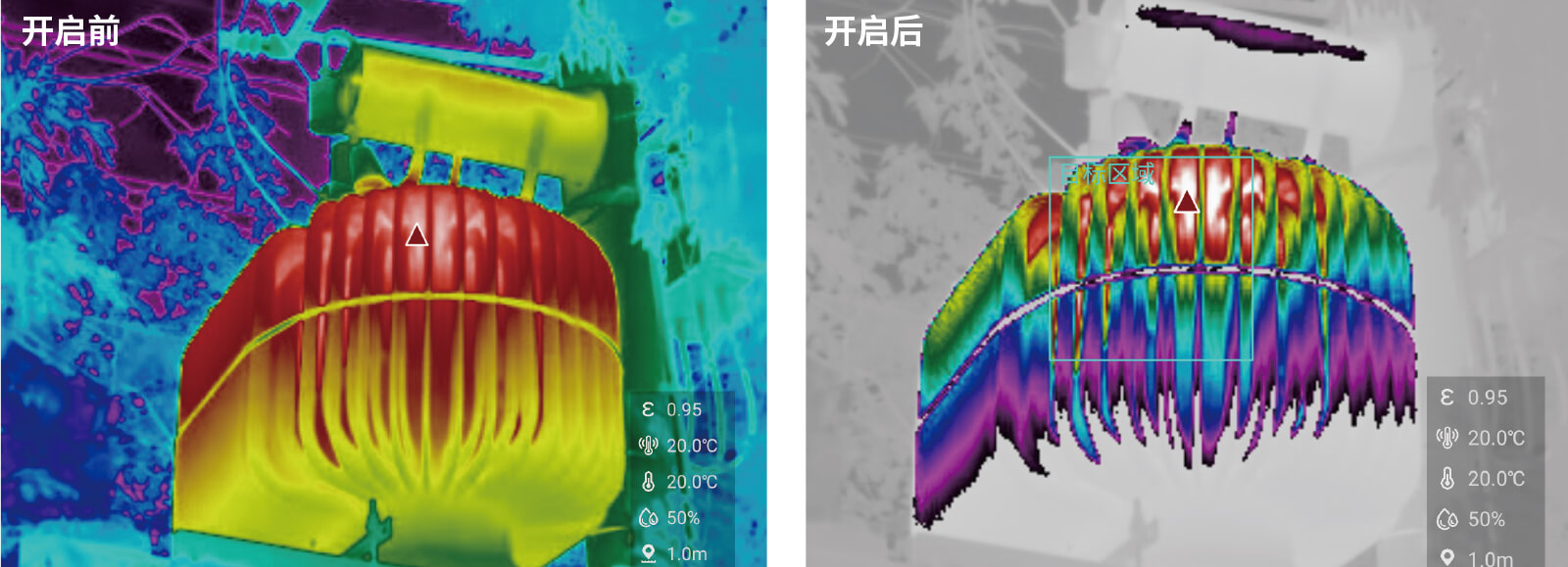

| MagicThermal Composite Color Palette Touch-enabled color thermal imaging in the target area with surrounding area displayed in black-and-white thermal. | |
| |

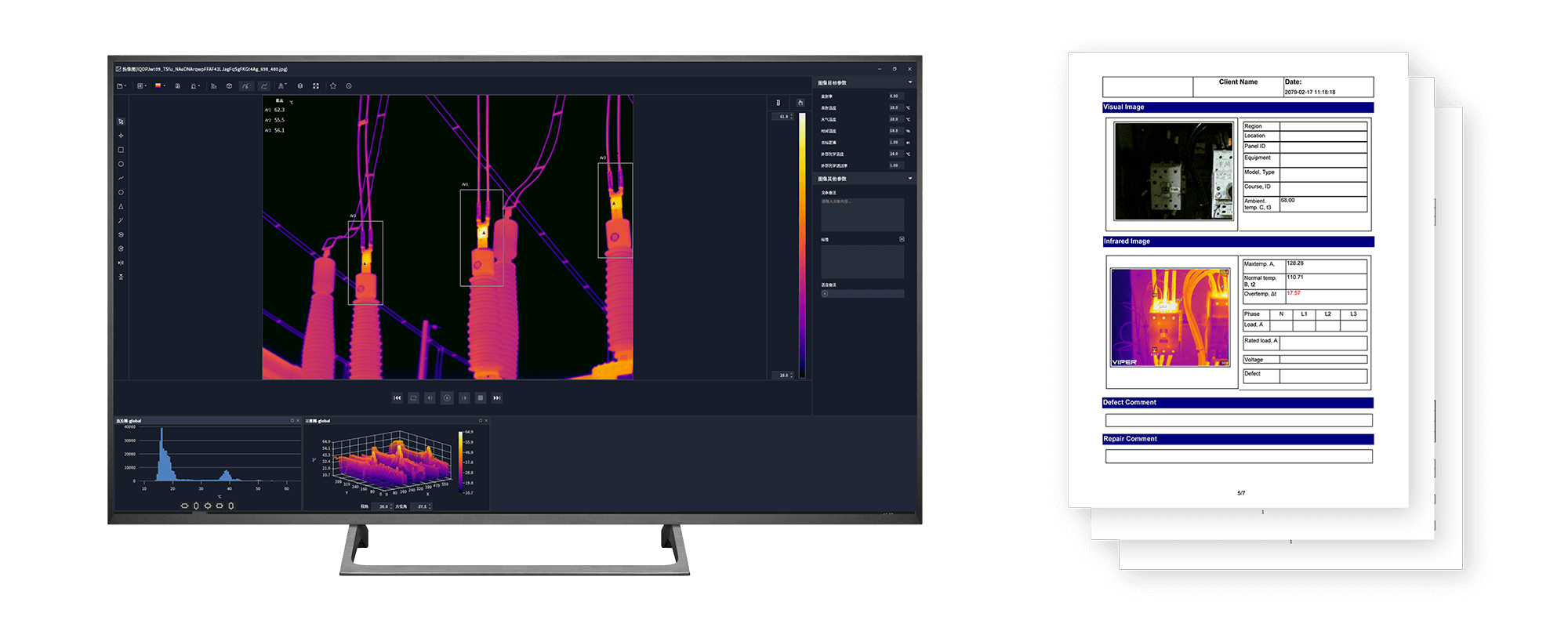

Professional Thermal Analysis Software Secondary analysis of thermal files — add, delete, rename, move, and resize measurement tools on thermal images or full radiometric thermal videos Modify measurement parameters including zone emissivity, reflected temperature, ambient temperature, relative humidity, etc. Supports histogram, 3D view, and line temperature distribution display Edit personalized inspection report templates; batch process thermal files; batch generate Word-format thermal inspection reports | |
 |
