FOTRIC 323Pro+
Product Introduction：
Version/Model: 323Pro+- Consultation Hotline：18615230752 Landline：0531-88975421
Product Details
Technical parameters
Application scenarios
Optional accessories
Contact Us
Product Overview

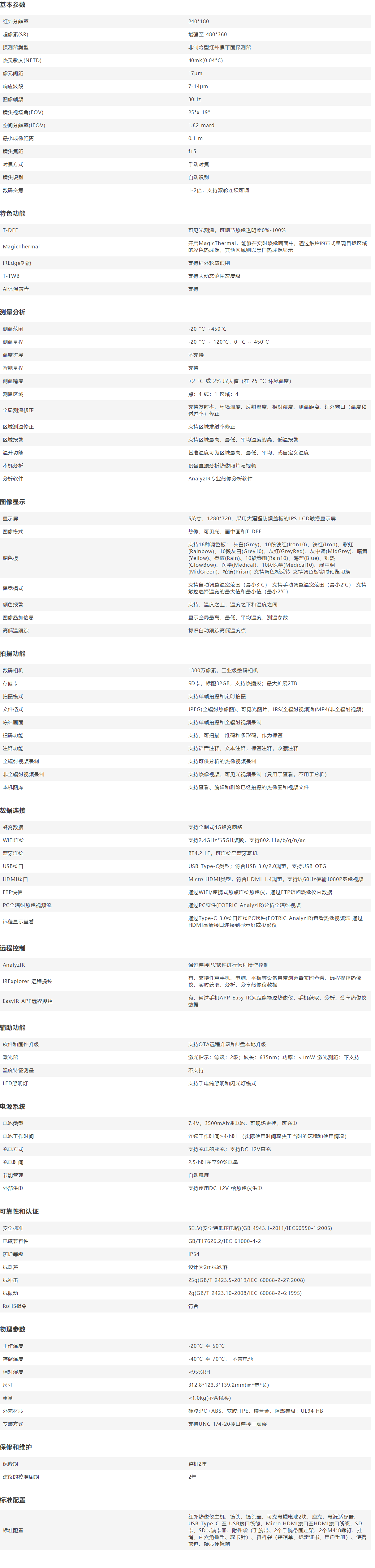

Technical parameters
Basic Parameters
| Specification | Value |
|---|---|
| Infrared Resolution | 240 × 180 |
| SuperPixel (SR) | Enhanced to 480 × 360 |
| Detector Type | Uncooled infrared focal plane array |
| Thermal Sensitivity (NETD) | 40 mK (0.04°C) |
| Pixel Pitch | 17 µm |
| Spectral Response | 7–14 µm |
| Frame Rate | 30 Hz |
| Lens FOV | 25° × 19° |
| Spatial Resolution (IFOV) | 1.82 mrad |
| Minimum Focus Distance | 0.1 m |
| Lens Focal Length | f/15 |
| Focus Mode | Manual focus |
| Lens Recognition | Auto-identify |
| Digital Zoom | 1–2×, continuous via scroll wheel |
Special Features
| Feature | Status |
|---|---|
| T-DEF | Visible-light thermography, adjustable thermal transparency 0–100% |

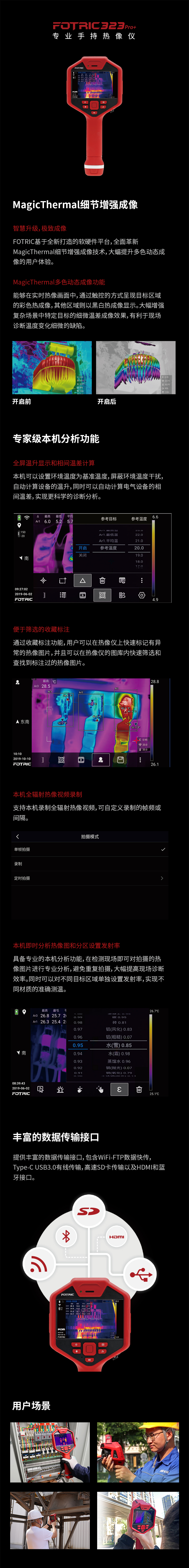

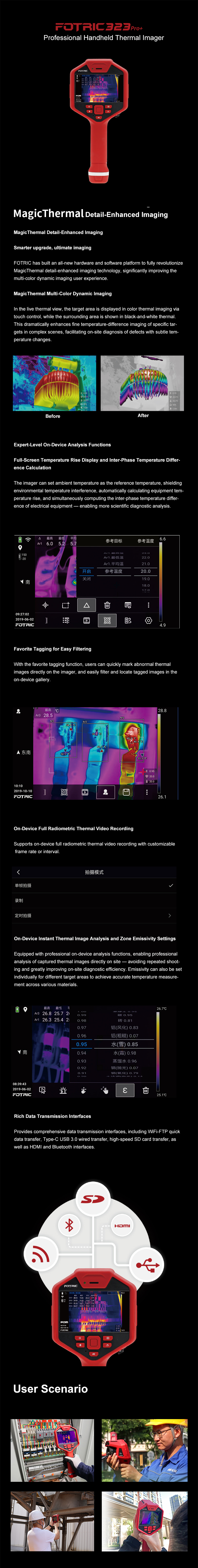

| MagicThermal | Touch-enabled color thermal imaging in target area with surrounding area in black-and-white thermal |
| IREdge | Infrared contour recognition supported |
| T-TWB | Large dynamic range grayscale supported |
| AI Body Temperature Screening | Supported |
Measurement & Analysis
| Specification | Value |
|---|---|
| Temperature Range | –20°C to 450°C |
| Temperature Ranges | –20°C to 120°C; 0°C to 450°C |
| Temperature Extension | Not supported |
| Smart Range | Supported |
| Measurement Accuracy | ±2°C or ±2%, whichever is greater (at 25°C ambient) |
| Measurement Objects | Points: 4; Lines: 1; Areas: 4 |
| Global Measurement Correction | Emissivity, ambient temperature, reflected temperature, relative humidity, measurement distance, IR window (temperature and transmittance) |
| Area Measurement Correction | Area emissivity correction supported |
| Area Alarm | High/low temperature alarm based on max, min, or average temperature |
| Temperature Rise Function | Reference temperature can be set to area max, min, average, or custom value |
| On-Device Analysis | Direct analysis of thermal images and videos |
| Analysis Software | AnalyzIR professional thermal analysis software |
Image Display
| Specification | Value |
|---|---|
| Display | 5-inch, 1280 × 720, IPS LCD touchscreen with Gorilla explosion-proof cover |
| Image Modes | Thermal, visible light, picture-in-picture, and T-DEF |
| Color Palettes | 16 palettes: Grey, Iron10, Iron, Rainbow, Grey10, GreyRed, MidGrey, Yellow, Rain, Rain10, Blue, GlowBow, Medical, Medical10, MidGreen, Prism; palette inversion and real-time preview switching supported |
| Temperature Span Mode | Auto-adjustable (min 3°C); manual adjustable (min 2°C); touch-selectable max/min values (min 2°C) |
| Color Alarm | Above, below, or between temperature |
| Image Overlay | Displays global max, min, average temperature and measurement parameters |
| Hot/Cold Tracking | Auto-tracking and marking of high/low temperature points |
Capture
| Specification | Value |
|---|---|
| Digital Camera | 13 MP industrial-grade camera |
| Storage | SD card, standard 32 GB, hot-swappable; max 2 TB expansion |
| Capture Modes | Single-frame and timed capture |
| File Format | JPEG (full radiometric thermal), visible image, IRS (full radiometric video), MP4 (non-radiometric video) |
| Freeze Frame | Supported for single capture and full radiometric video recording |
| QR/Barcode Scan | Supported; scanned as labels |
| Annotation | Voice, text, label, and favorite annotations |
| Full Radiometric Video Recording | Supported for post-analysis |
| Non-Radiometric Video Recording | Thermal and visible video for viewing only (not for analysis) |
| On-Device Gallery | View, edit, and delete captured images and videos |
Data Connectivity
| Specification | Value |
|---|---|
| Cellular | Full 4G network support |
| WiFi | 2.4 GHz and 5 GHz, 802.11a/b/g/n/ac |
| Bluetooth | BT4.2 LE, connects to Bluetooth headsets |
| USB | USB Type-C; USB 3.0/2.0 compliant, USB OTG supported |
| HDMI | Micro HDMI, HDMI 1.4 compliant, 60 Hz 1080P video transmission |
| FTP Transfer | Access imager data via WiFi/hotspot through FTP |
| PC Full Radiometric Video Stream | Full analysis via FOTRIC AnalyzIR software |
| Remote Display | View thermal video stream via Type-C 3.0 to PC software (AnalyzIR); connect to display/projector via HDMI |
| Remote Control — AnalyzIR | Full remote operation via PC software |
| Remote Control — IRExplorer | Supported; use the built-in browser on any smartphone, PC, or tablet to view and remotely control the imager; real-time access, analysis, and sharing of thermal data |
| Remote Control — EasyIR APP | Supported; control the imager remotely via the EasyIR mobile app; access, analyze, and share thermal data from your phone |
Auxiliary Functions
| Specification | Value |
|---|---|
| Software & Firmware Upgrade | OTA remote upgrade and USB drive local upgrade supported |
| Laser | Laser pointer: Class 2; wavelength 635 nm; power <1 mW; Laser rangefinder: Not supported |
| Temperature Feature Measurement | Not supported |
| LED Flashlight | Flashlight and strobe mode |
Power System
| Specification | Value |
|---|---|
| Battery | 7.4 V, 3500 mAh Li-ion, field-replaceable and rechargeable |
| Battery Life | ≥4 hours continuous operation (actual depends on environment and usage) |
| Charging | Desktop charger; DC 12 V direct charge |
| Charging Time | 90% in 2.5 hours |
| Power Saving | Auto screen-off |
| External Power | DC 12 V supported |
Reliability & Certification
| Specification | Value |
|---|---|
| Safety Standard | SELV (GB 4943.1-2011 / IEC 60950-1:2005) |
| EMC | GB/T 17626.2 / IEC 61000-4-2 |
| Ingress Protection | IP54 |
| Drop Resistance | Designed for 2 m drop |
| Shock Resistance | 25 g (GB/T 2423.5-2019 / IEC 60068-2-27:2008) |
| Vibration Resistance | 2 g (GB/T 2423.10-2008 / IEC 60068-2-6:1995) |
| RoHS | Compliant |
Physical
| Specification | Value |
|---|---|
| Operating Temperature | –20°C to 50°C |
| Storage Temperature | –40°C to 70°C (without battery) |
| Relative Humidity | <95% RH |
| Dimensions | 312.8 × 123.3 × 139.2 mm (H × W × L) |
| Weight | <1.0 kg (without lens) |
| Housing Material | Hard plastic: PC+ABS; soft plastic: TPE; magnesium alloy; flame retardant rating: UL94 HB |
| Mount | UNC 1/4-20 tripod mount |
Warranty & Maintenance
| Item | Value |
|---|---|
| Warranty | 2 years (whole unit) |
| Recommended Calibration Interval | 2 years |
Standard Package
Infrared thermal imager host, lens, lens cap, 2 × rechargeable Li-ion batteries, desktop charger, power adapter, USB Type-C to USB cable, Micro HDMI to HDMI cable, SD card, SD card reader, accessory pouch (wrist strap, 2 × wrist strap brackets, 2 × M4×8 screws, lanyard, hex key, SIM ejector pin), document pouch (packing list, calibration certificate, user manual), soft carry bag, hard carrying case.
