FOTRIC 326WIR
Product Introduction：
Handheld thermal imager, great value, range -20℃~700- Consultation Hotline：18615230752 Landline：0531-88975421
Product Details
Technical parameters
Application scenarios
Optional accessories
Contact Us
Product Overview
Technical parameters

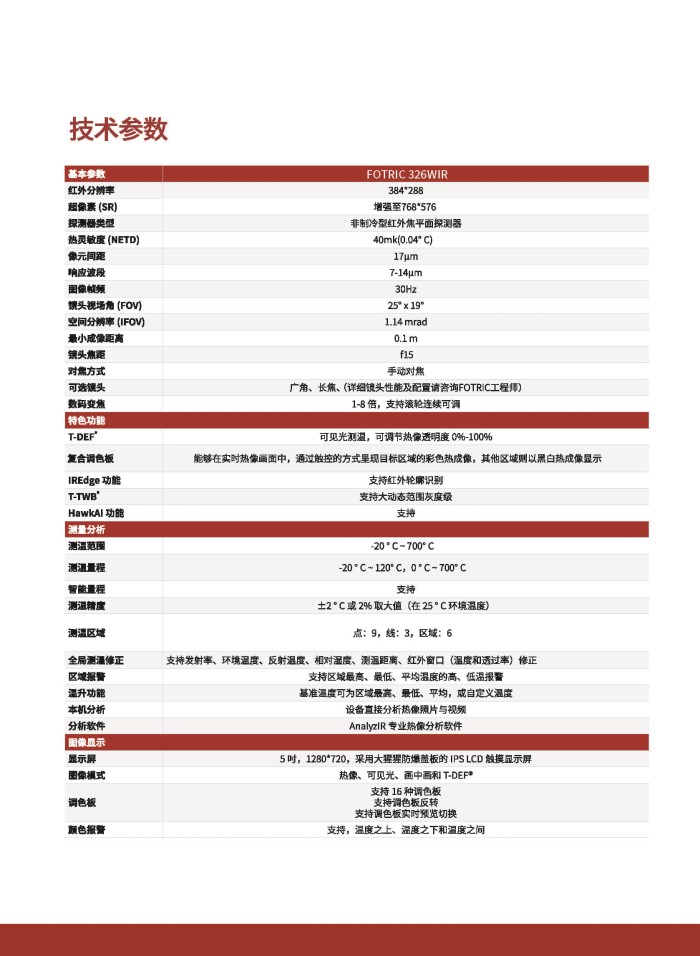

Technical Specifications
Basic Parameters
| Specification | Value |
|---|---|
| Infrared Resolution | 384 × 288 |
| SuperPixel (SR) | Enhanced to 768 × 576 |
| Detector Type | Uncooled infrared focal plane array |
| Thermal Sensitivity (NETD) | 40 mK (0.04°C) |
| Pixel Pitch | 17 µm |
| Spectral Response | 7–14 µm |
| Frame Rate | 30 Hz |
| Lens FOV | 25° × 19° |
| Spatial Resolution (IFOV) | 1.14 mrad |
| Minimum Focus Distance | 0.1 m |
| Lens Focal Length | f/15 |
| Focus Mode | Manual focus |

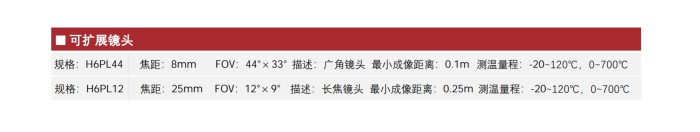

| Optional Lenses | Wide-angle, telephoto (for detailed lens performance and configuration, consult FOTRIC engineers) |
| Digital Zoom | 1–8×, continuous via scroll wheel |
Special Features
| Feature | Description |
|---|---|
| T-DEF | Visible-light thermography, adjustable thermal transparency 0–100% |
| MagicThermal | Touch-enabled color thermal imaging in target area with surrounding area in black-and-white thermal |
| IREdge | Infrared contour recognition supported |
| T-TWB | Large dynamic range grayscale supported |
| HawkAI | Supported |
Measurement & Analysis
| Specification | Value |
|---|---|
| Temperature Range | –20°C to 700°C |
| Temperature Ranges | –20°C to 120°C; 0°C to 700°C |
| Smart Range | Supported |
| Measurement Accuracy | ±2°C or ±2%, whichever is greater (at 25°C ambient) |
| Measurement Objects | Points: 9; Lines: 3; Areas: 6 |
| Global Measurement Correction | Emissivity, ambient temperature, reflected temperature, relative humidity, measurement distance, IR window (temperature and transmittance) |
| Area Alarm | High/low temperature alarm based on max, min, or average temperature |
| Temperature Rise Function | Reference temperature can be set to area max, min, average, or custom value |
| On-Device Analysis | Direct analysis of thermal images and videos |
| Analysis Software | AnalyzIR professional thermal analysis software |
Image Display
| Specification | Value |
|---|---|
| Display | 5-inch, 1280 × 720, IPS LCD touchscreen with Gorilla Glass explosion-proof cover |
| Image Modes | Thermal, visible light, picture-in-picture, and T-DEF |
| Color Palettes | 16 palettes; palette inversion and real-time preview switching supported |
| Color Alarm | Above, below, or between temperature |

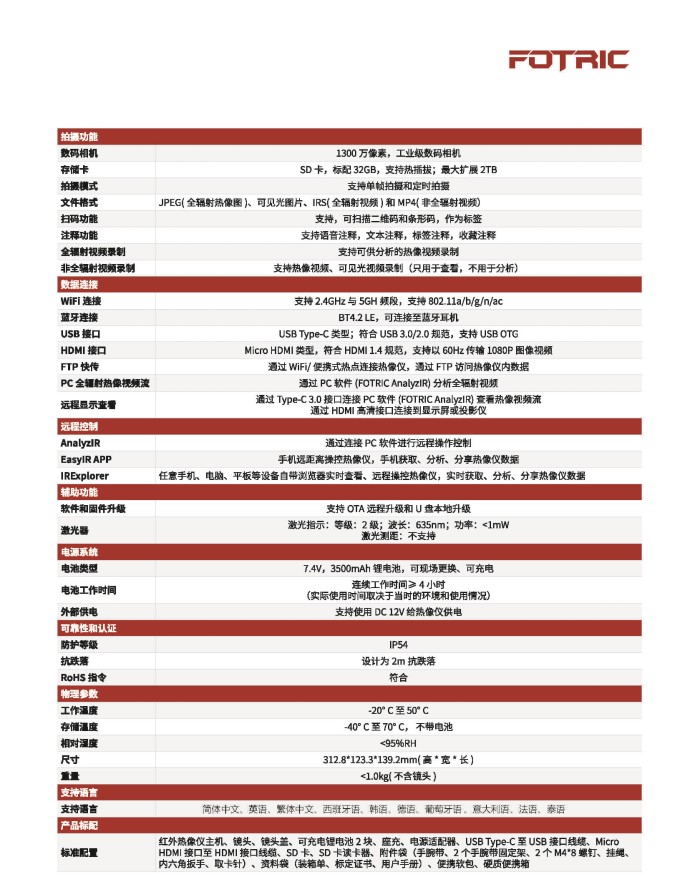

Capture
| Specification | Value |
|---|---|
| Digital Camera | 13 MP industrial-grade camera |
| Storage | SD card, standard 32 GB, hot-swappable; max 2 TB expansion |
| Capture Modes | Single-frame and timed capture |
| File Format | JPEG (full radiometric thermal), visible image, IRS (full radiometric video), MP4 (non-radiometric video) |
| QR/Barcode Scan | Supported; scanned as labels |
| Annotation | Voice, text, label, and favorite annotations |
| Full Radiometric Video Recording | Supported for post-analysis |
| Non-Radiometric Video Recording | Thermal and visible video for viewing only (not for analysis) |
Data Connectivity
| Specification | Value |
|---|---|
| WiFi | 2.4 GHz and 5 GHz, 802.11a/b/g/n/ac |
| Bluetooth | BT4.2 LE, connects to Bluetooth headsets |
| USB | USB Type-C; USB 3.0/2.0 compliant, USB OTG |
| HDMI | Micro HDMI, HDMI 1.4 compliant, 60 Hz 1080P video transmission |
| FTP Transfer | Access imager data via WiFi/hotspot through FTP |
| PC Full Radiometric Video Stream | Full analysis via FOTRIC AnalyzIR software |
| Remote Display | View thermal video stream via Type-C 3.0 to PC software (AnalyzIR); connect to display/projector via HDMI |
| Remote Control — AnalyzIR | Full remote operation via PC software |
| Remote Control — EasyIR APP | Remotely control the imager via phone; access, analyze, and share thermal data |
| Remote Control — IRExplorer | Use the built-in browser on any smartphone, PC, or tablet to view and remotely control the imager in real time |
Auxiliary Functions
| Specification | Value |
|---|---|
| Software & Firmware Upgrade | OTA remote upgrade and USB drive local upgrade |
| Laser Rangefinder | Not supported |
| Laser Pointer | Class 2; wavelength 635 nm; power <1 mW |
Power System
| Specification | Value |
|---|---|
| Battery | 7.4 V, 3500 mAh Li-ion, field-replaceable and rechargeable |
| Battery Life | ≥4 hours continuous operation (actual depends on environment and usage) |
| External Power | DC 12 V supported |
Reliability & Certification
| Specification | Value |
|---|---|
| Ingress Protection | IP54 |
| Drop Resistance | Designed for 2 m drop |
| RoHS | Compliant |
Physical
| Specification | Value |
|---|---|
| Operating Temperature | –20°C to 50°C |
| Storage Temperature | –40°C to 70°C (without battery) |
| Relative Humidity | <95% RH |
| Dimensions | 312.8 × 123.3 × 139.2 mm (H × W × L) |
| Weight | <1.0 kg (without lens) |
Supported Languages
Simplified Chinese, Traditional Chinese, English, Spanish, Korean, German, Portuguese, Italian, French, Thai
Standard Package
Infrared thermal imager host, lens, lens cap, 2 × rechargeable Li-ion batteries, desktop charger, power adapter, USB Type-C to USB cable, Micro HDMI to HDMI cable, SD card, SD card reader, accessory pouch (wrist strap, 2 × wrist strap brackets, 2 × M4×8 screws, lanyard, hex key, SIM ejector pin), document pouch (packing list, calibration certificate, user manual), soft carry bag, hard carrying case.
