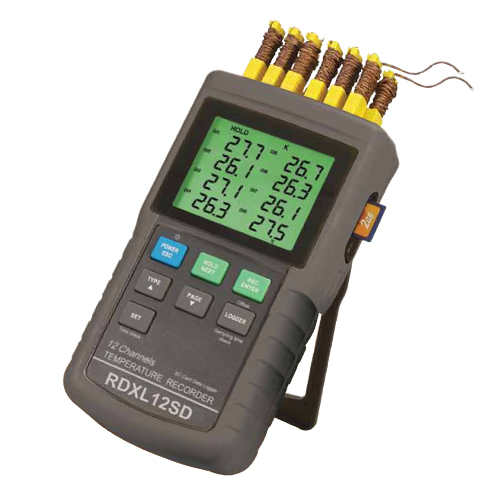

RDXL12SD Multi-Channel Temperature Recorder

Product Introduction：

RDXL4SD, RDXL12SD multi-channel temperature recorders, American Omega 4-channel and 12-channel portable thermometers, RDXL4SD, RDXL12SD multi-channel temperature recorders 4-channel and 12-channel portable thermometers/data loggers with SD card data storage, SD card, real-time data logger, input signals: T/C, K, J, T, E, R/S thermocouples and RTD Pt100Ω measurement (RDXL4SD model only)

  • Consultation Hotline：18615230752   Landline：0531-88975421

  • Product Details

  • Technical parameters

  • Application scenarios

  • Optional accessories

  • Contact Us

The RDXL4SD and RDXL12SD models offer high resolution and fast analog-to-digital conversion (ADC), meeting most data recording needs for a variety of industrial applications.


They come standard with a real-time SD card data logger, built-in clock and calendar, real-time data recorder, and a sampling time setting feature ranging from 1 to 3600 seconds. If the sampling time is set to 0, you can record data manually. This series of real-time data loggers saves temperature measurements from 4 or 12 channels along with time information (year, month, day, hour, minute, second) on an SD card, which can then be downloaded to generate Excel files. End users can perform any data or graphical analysis themselves.

Product Overview

RDXL4SD, RDXL12SD Multi-Channel Temperature Data Logger Features


4-channel and 12-channel portable thermometer/data logger with SD card data storage

SD card, real-time data logging

Input signals: T/C, K, J, T, E, R/S thermocouples and RTD Pt100Ω measurement (RDXL4SD only)

Can display all input channels at the same time

Data hold, record max and min readings

RS232/USB PC interface

Green backlit LCD for easy reading

SD card storage capacity: 1~16 GB

The portable RDXL4SD and RDXL12SD models are handheld thermometers/data loggers with backlit displays and built-in analysis functions.

This data logger is powered by a built-in battery, allowing you to sample, process, and display measurement data without connecting to a computer.
