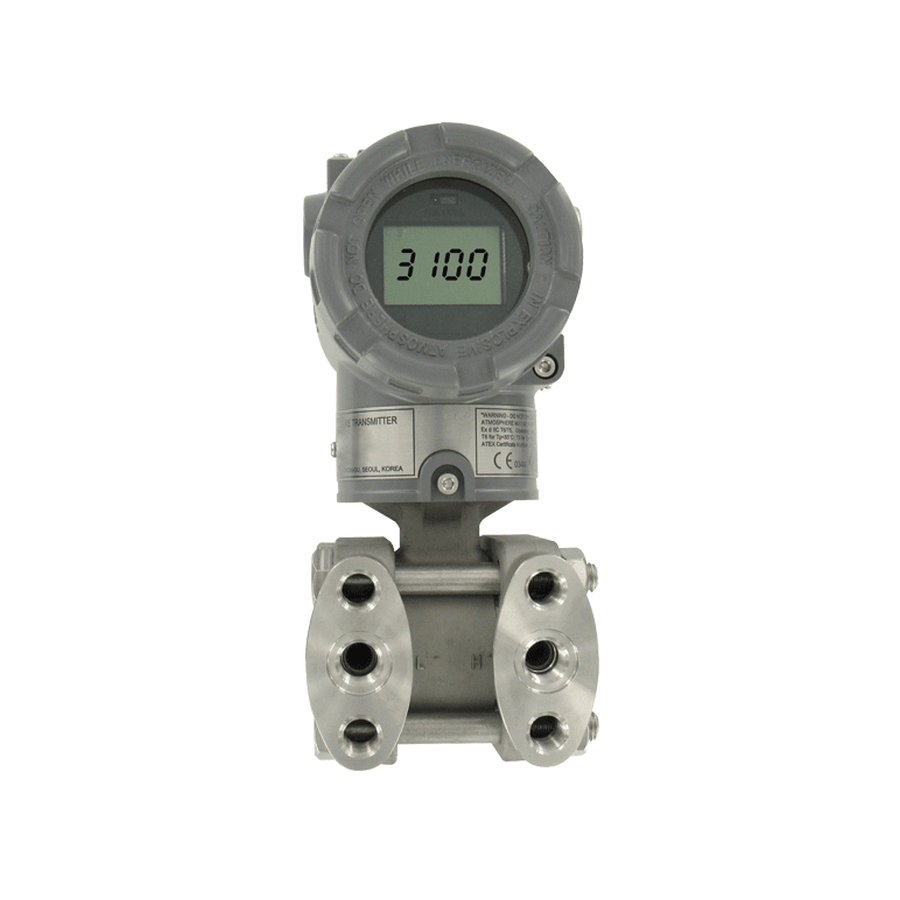

The Mercoid 3100D series smart pressure transmitter is a high-performance, microprocessor-based transmitter with flexible pressure calibration, button configuration, and can be programmed using HART communication. The 3100D series allows you to set zero and span for differential or level applications using buttons, with no field calibrator needed during setup. The transmitter's software compensates for thermal effects to improve performance. Configuration settings are stored in EEPROM along with sensor calibration coefficients for use during downtime or power outages. The 3100D series is FM or ATEX approved for hazardous (classified) locations. Its 100:1 range allows the smart transmitter to be configured for pretty much any application.

●  Configurable using zero/span buttons means no calibrator required reducing time to install and running

●  Range-ability and selectable engineering units, allows transmitter to fit many applications reducing the number of different transmitters to meet specifications

●  High accuracy (±0.075%) provides exceptional measurement for ensuring tight control and minimizing costly out of specification conditions

●  Automatic sensor temperature compensation improves performance of device for accurate measurement under different operating environments

●  Fail-mode process function stores configuration settings in the event of shutdown or power-loss provides for faster restart to getting application back on-line

●  A HART? Communication programmable device provides a reliable, long-term solution for plant operators who seek the benefits of intelligent devices with digital communication
