The XTC601 binary gas analyzer is used to measure the percentage of a selected gas in a binary gas mixture. It uses high-quality thermistors and utilizes the thermal conductivity of gases, offering reliable performance and high stability. The XTP601 is enclosed in an explosion-proof housing with a protection level of ATEX Cat II, making it suitable for use in hazardous areas. A general-purpose version is also available for installation in non-hazardous areas.

Compared with other similar products, the sensors of the XTC601 binary gas analyzer greatly reduce drift, thereby improving measurement stability. This feature provides longer calibration intervals while lowering labor and consumable costs.

The measurement principle is realized through matched thermistors in a Wheatstone bridge structure. One thermistor is placed in the sample gas chamber, while the other is in a sealed or flowing reference chamber. The entire assembly is heated to 50°C to ensure an isothermal environment. Such an environment provides an accurate and stable platform for measuring the target gas concentration.

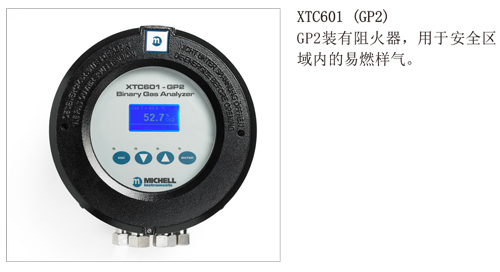

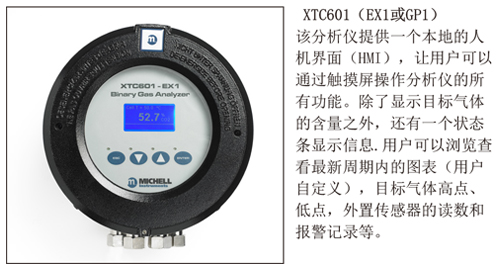

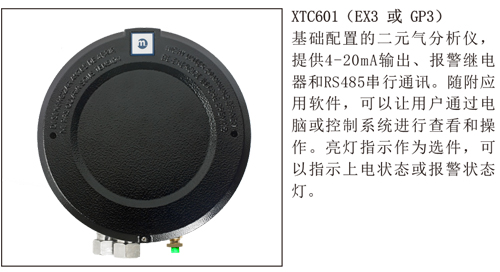

The XTC601 binary gas analyzer is available in three configurations, each of which offers either a General Purpose (GP) version or an Explosive Atmosphere (EX) version, allowing customers to choose according to their needs. Customers can select the most suitable cost-effective solution for each actual installation.

Advanced Sampling and Processing System PS601 Matching XTC601

To ensure long-term, trouble-free use, the analyzer requires a gas that is clean, dry, particle-free, and at the appropriate temperature and pressure. In reality, the process gas to be measured almost never meets these requirements. Michell Instruments provides a complete solution to this problem: the XTC601 and PS601 sampling and processing system. This modular system can be customized according to user information to ensure the optimal solution for each individual application.

Highlights:

- Certified for hazardous locations by ATEX, IECEx, TC TR Ex, and CCSAUS

- Optional LED status display compliant with NAMUR standards

- Compact, rugged explosion-proof housing design, equipped with EExd enclosure and dual passive 4-20mA outputs

- Touchscreen operation allows calibration or adjustment without a hot work permit

- Accuracy better than ±2% of full scale

- Enclosure protection rating IP66

- Low-cost maintenance, requiring minimal upkeep

- Available ranges: 0–5 up to 0–100%, 0–1% (for hydrogen or helium)

- Stability monthly drift less than ±0.5% of the range
